Olmo Sierra Wall Mount Indoor Unit ¡ª 24,000 BTU ? OS-M24SRW-230VI
Higher-capacity multi-zone indoor head with Smart Connect (app control) included, plus remote features like Sleep, Turbo, Eco, timer, multiple fan speeds, and auto-swing louvers.
Overview

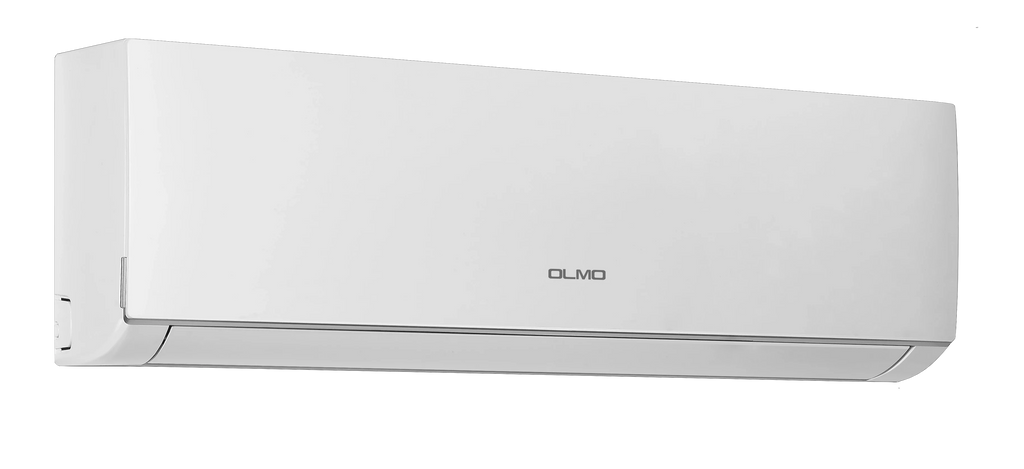

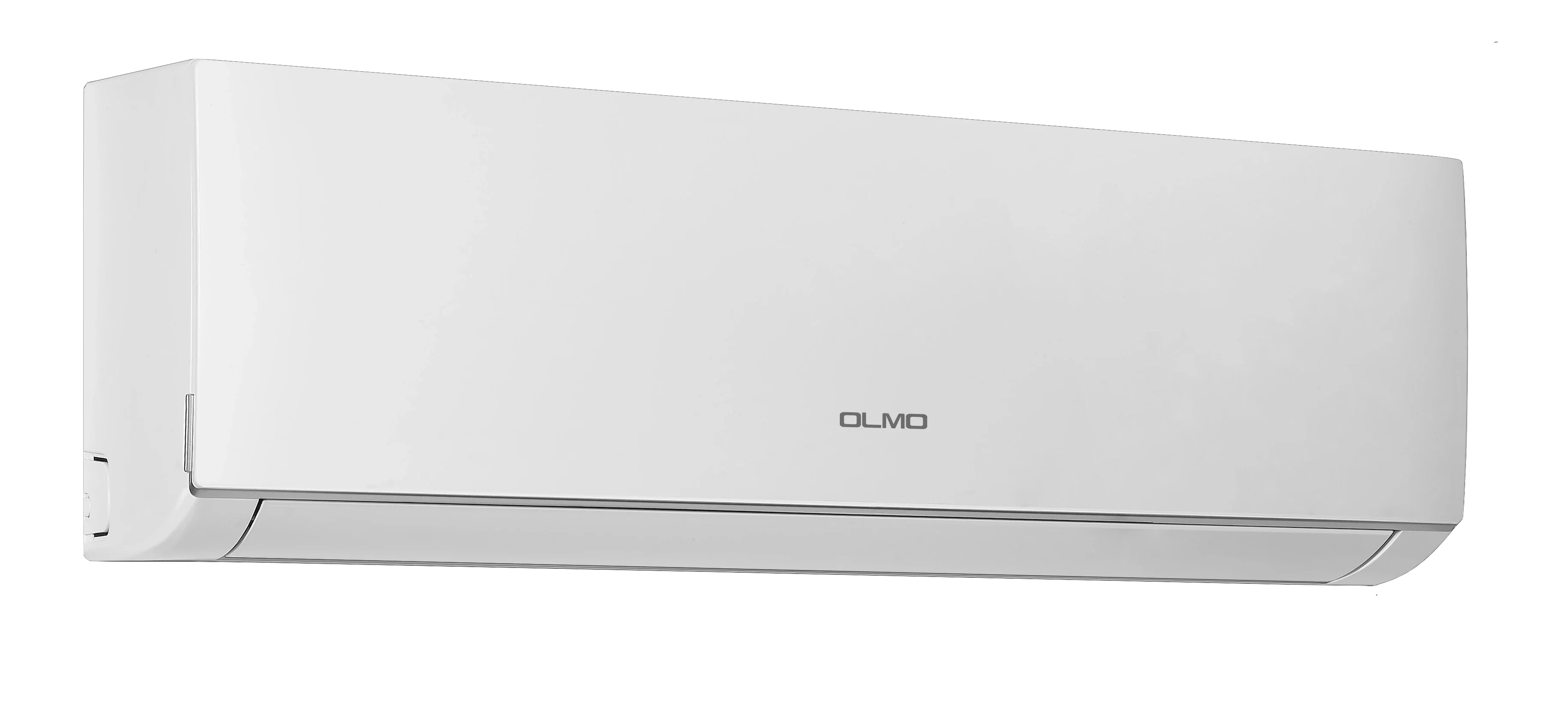

The OS-M24SRW-230VI is a wall-mount ductless indoor unit built for Olmo Multi-Sierra Series multi-zone systems. With Smart Connect included, it can be controlled independently through the app from wherever you are, adding comfort and convenience to a multi-zone setup. A remote control is included with features such as Sleep, Turbo, and Eco modes, plus multiple fan speeds, timer functions, and auto-swing louvers.
Highlights
- Multi-Sierra compatible: Designed to combine with Olmo Multi-Sierra outdoor units.

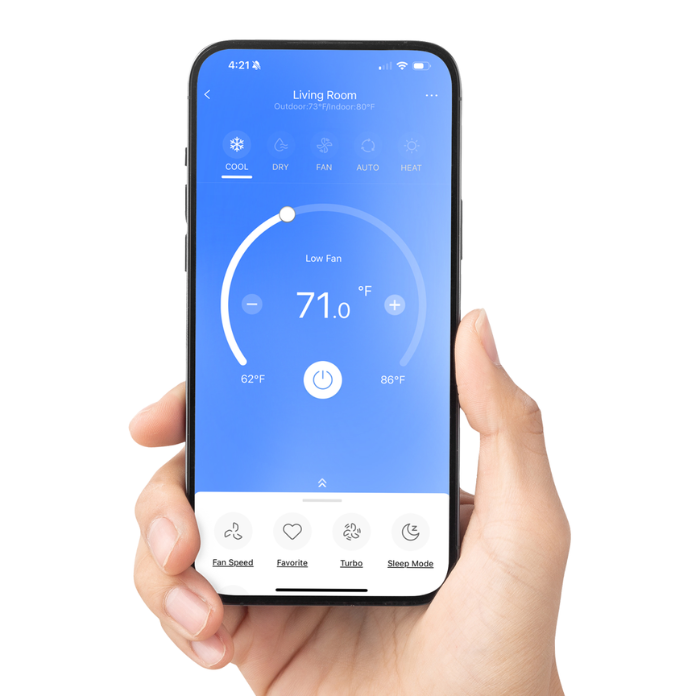

- Smart control included: Smart Connect enables app-based control and independent zoning.
- Comfort modes on the remote: Sleep, Turbo, Eco, timer functions, and multiple fan speeds.
- High airflow capability: Listed indoor airflow of 706.
What's Included

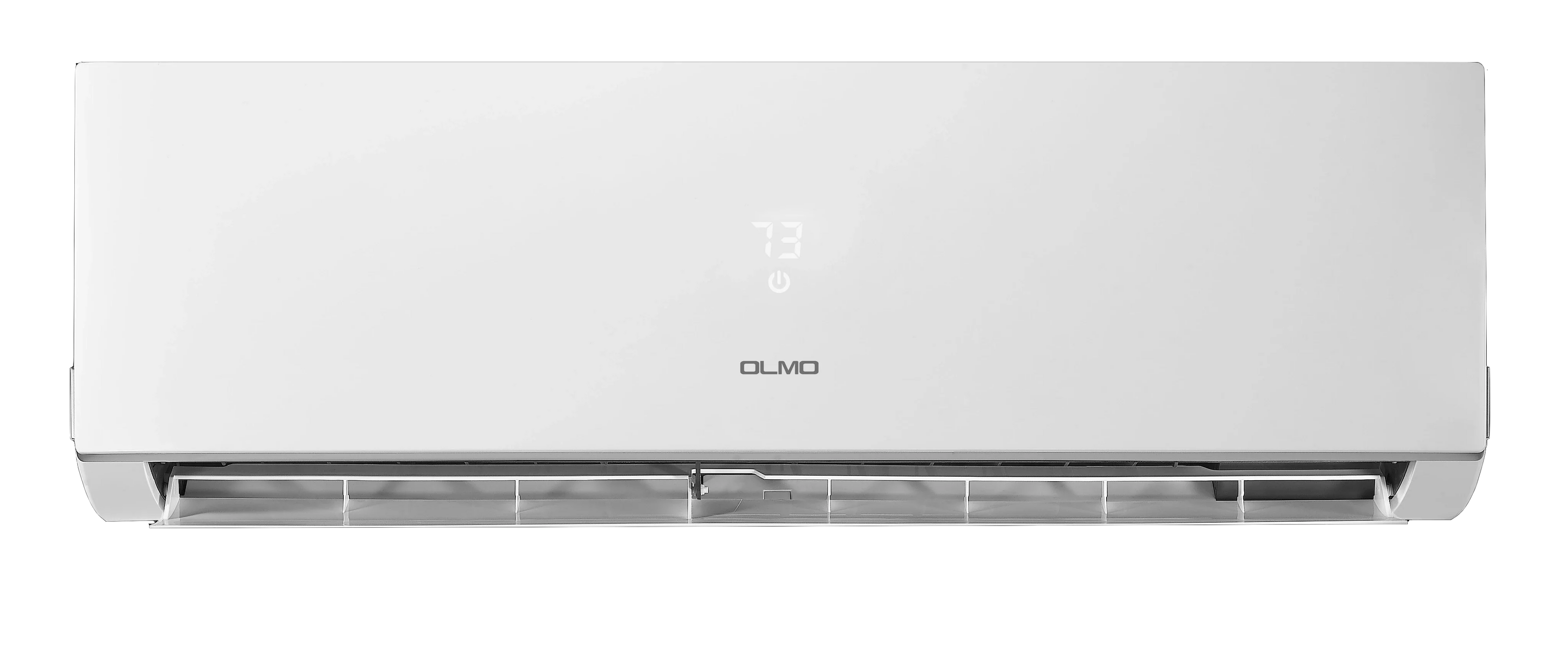

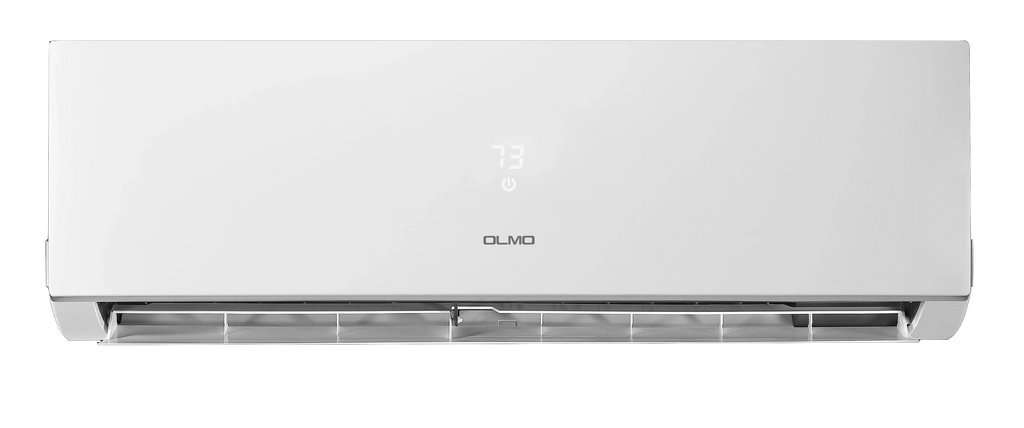

- Indoor wall mount unit: OS-M24SRW-230VI
- Smart Connect (WiFi / app control) module: included

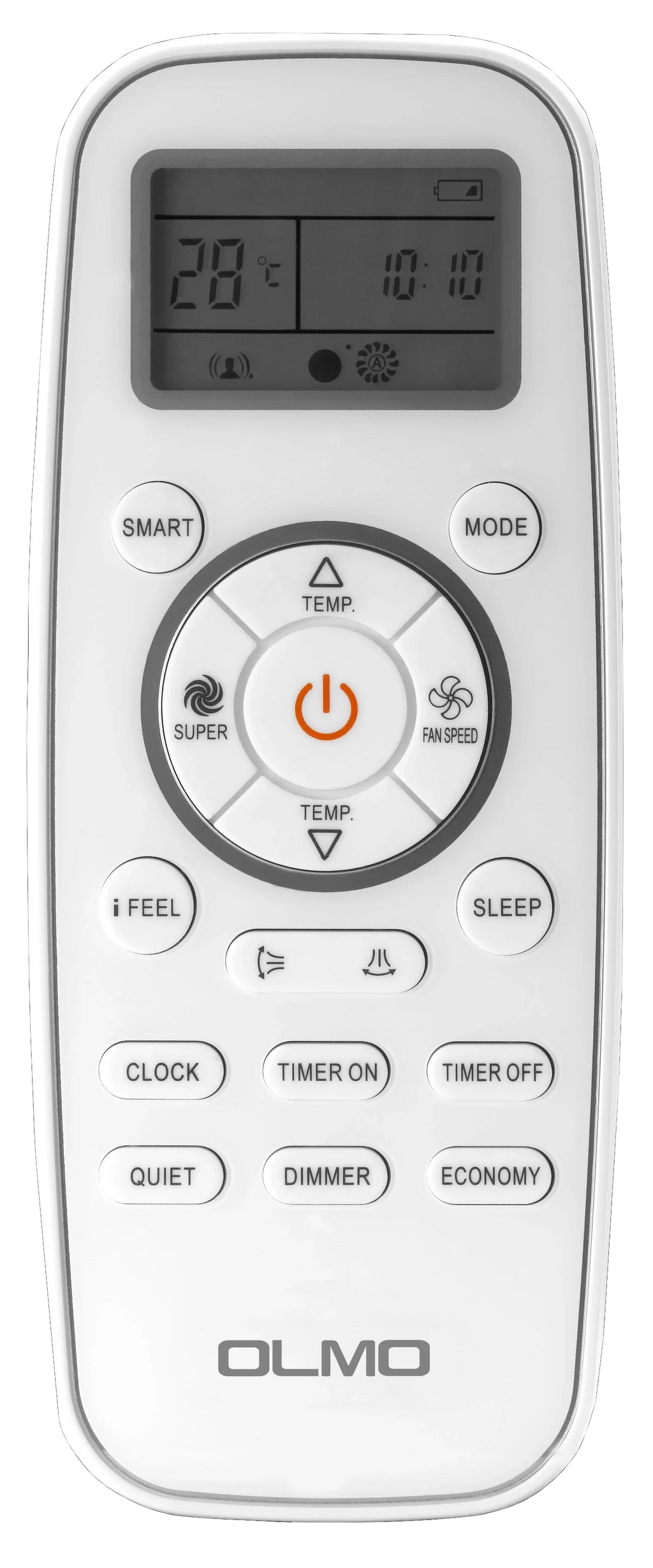

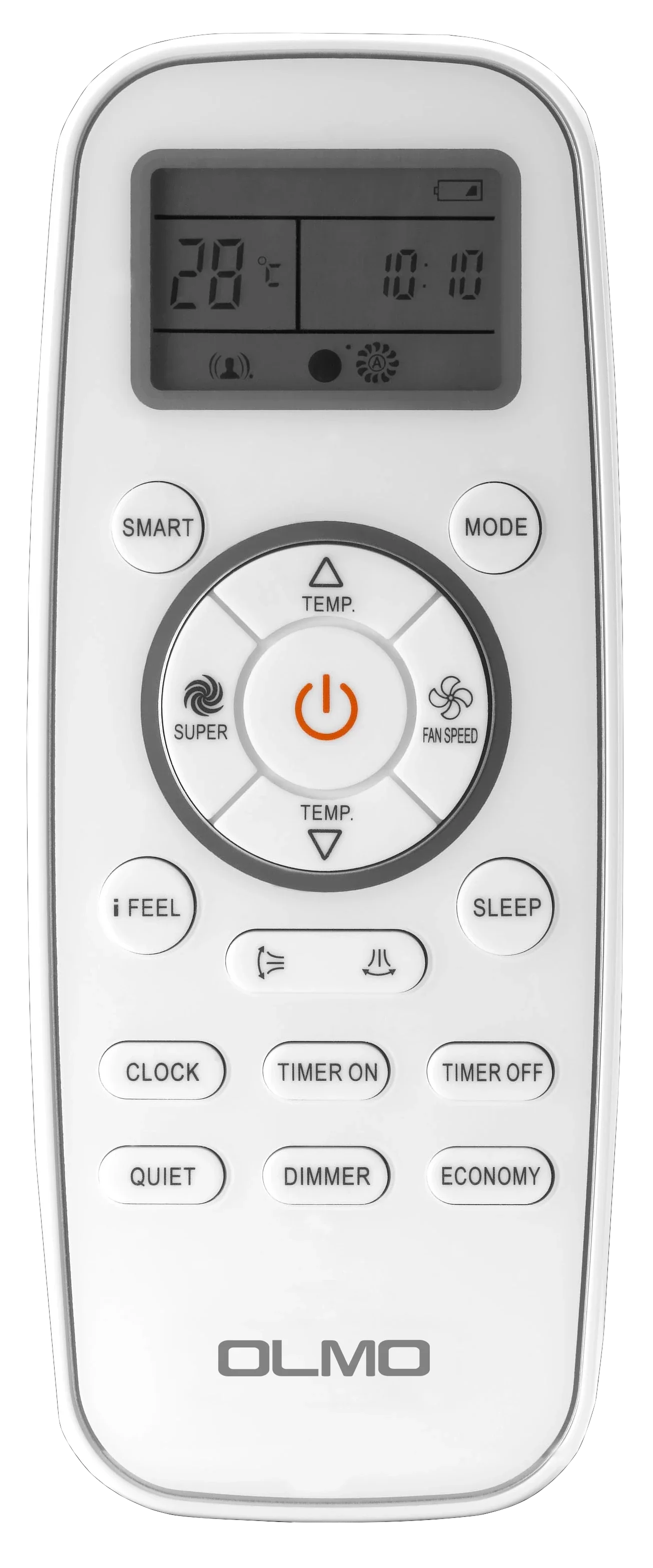

- Remote control (included)
Indoor Specs
| Spec | Details |
|---|---|
| Model | OS-M24SRW-230VI |
| BTU Rated | 23,400 |
| Power Source | 208¨C230V, 1Ph, 60Hz |
| Controller | L1-12 |
| Refrigerant Piping (Liquid / Gas) | 3/8" / 5/8" |
| Indoor Noise (H/M/L) | 47 / 45 / 42 dB(A) |
| Indoor Air Flow | 706 |
| Unit Dimensions (W¡ÁH¡ÁD) | 42 3/4 ¡Á 12 3/8 ¡Á 9 5/16 in |
| Unit Net / Gross Weight | 31.97 / 37.48 lb |
| Packing Dimensions (W¡ÁD¡ÁH) | 46 1/16 ¡Á 15 3/8 ¡Á 12 7/16 |
Videos
Documents & Downloads
No documents were provided for this model in the supplied info.
Important
Installed by a licensed HVAC professional. This is an indoor wall-mount unit intended to be matched with a compatible Olmo Multi-Sierra outdoor system. Confirm electrical requirements (208¨C230V) and piping sizes (3/8" liquid, 5/8" gas) before ordering.
