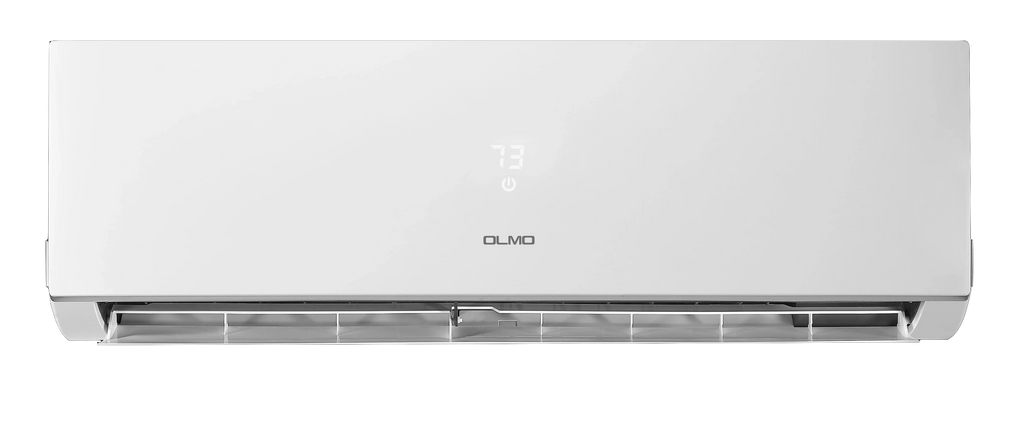

Olmo Sierra Wall Mount Indoor Unit ¡ª 18,000 BTU ? OS-M18SRW-230VI
Multi-zone indoor head with Smart Connect (app control) included, plus remote features like Sleep, Turbo, Eco, timer, multiple fan speeds, and auto-swing louvers.
Overview

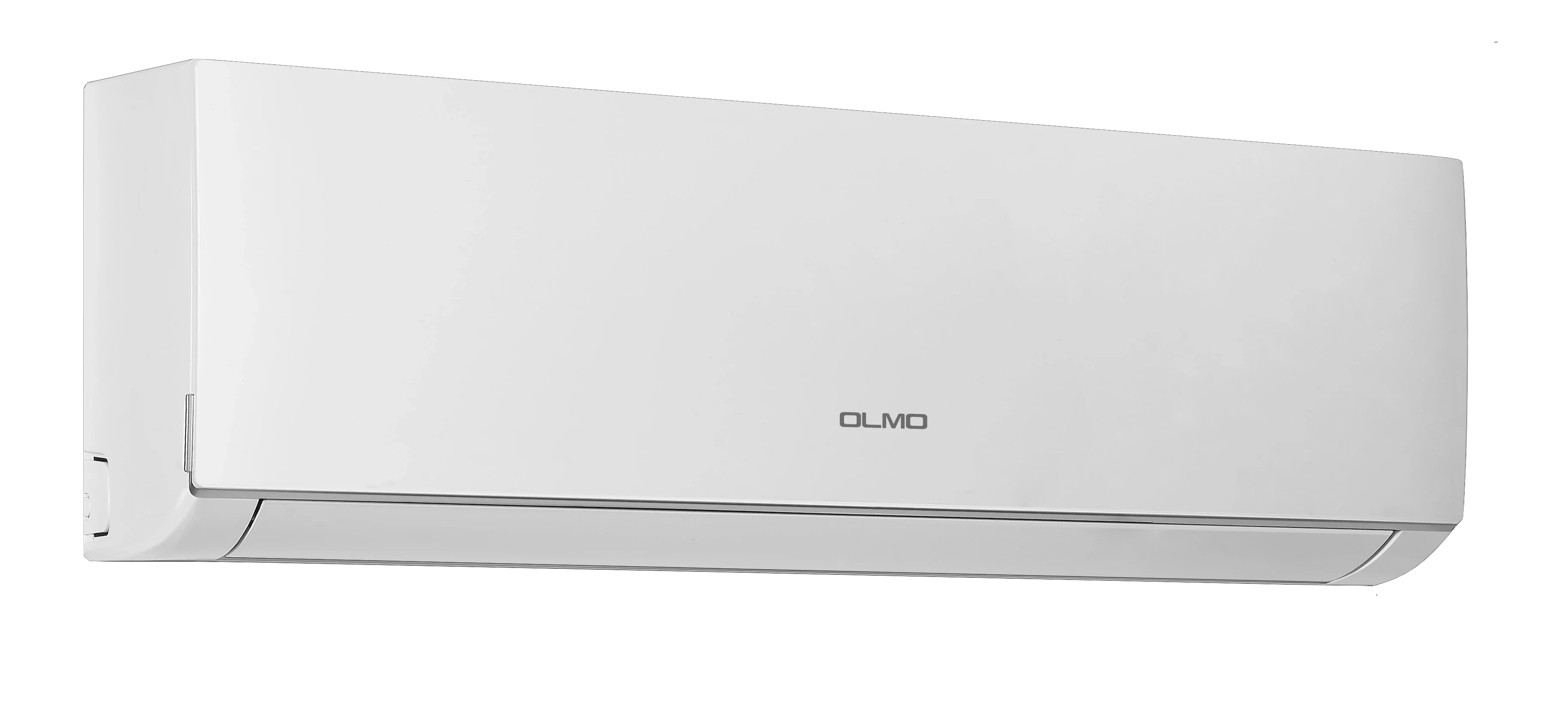

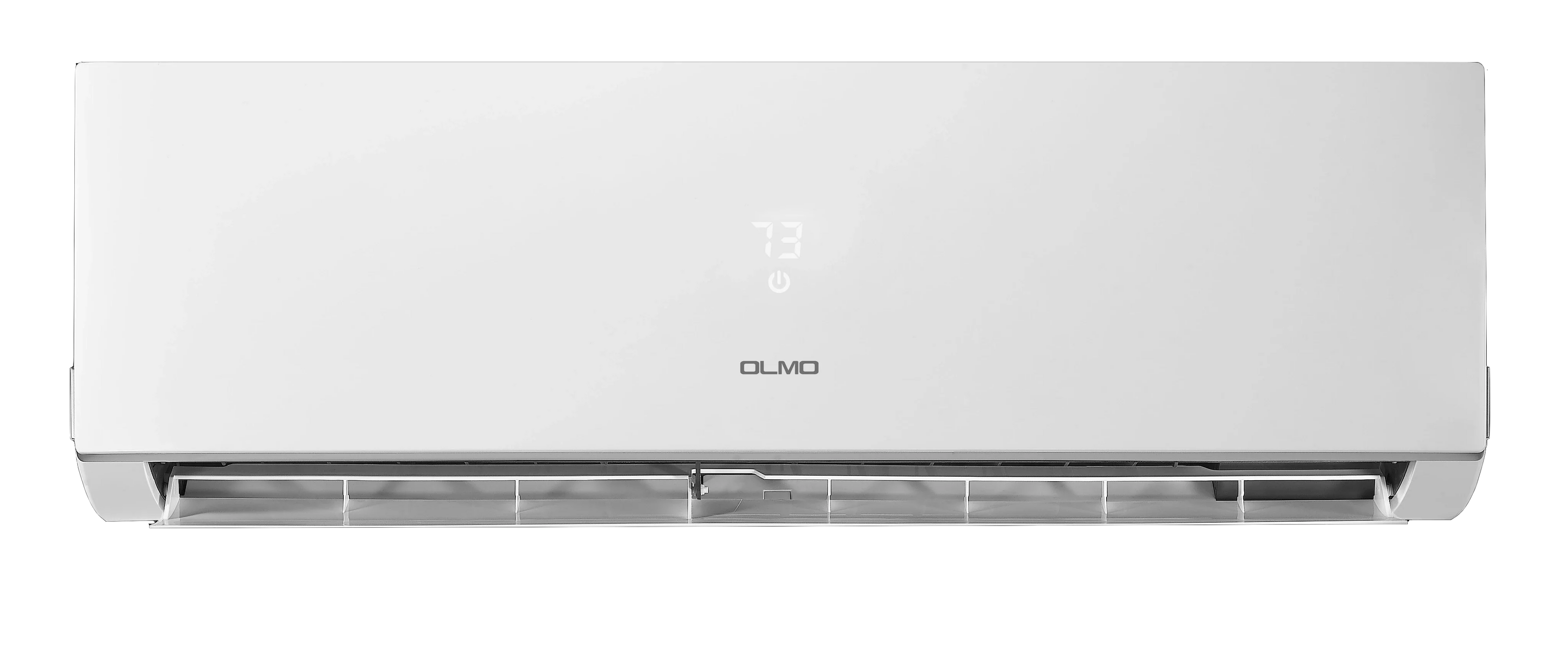

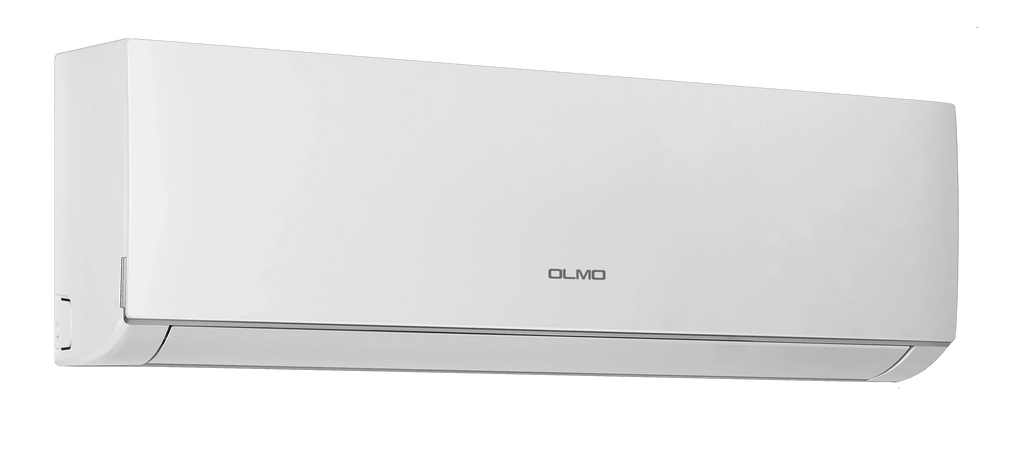

The OS-M18SRW-230VI is a 18,000 BTU wall-mount ductless indoor unit designed to pair with Olmo Multi-Sierra Series outdoor units. It includes Smart Connect for independent app control, helping add convenience and room-by-room comfort to a multi-zone system. The included remote supports comfort modes like Sleep, Turbo, and Eco, along with multiple fan speeds, timer functions, and auto-swing louvers.
Highlights
- Multi-Sierra compatible: Designed to combine with Olmo Multi-Sierra outdoor units.

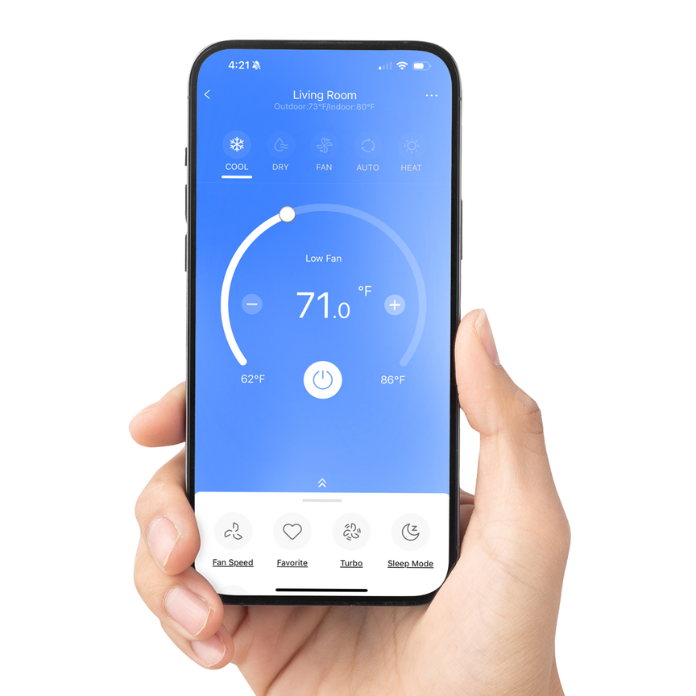

- Smart control included: Smart Connect enables app-based control from wherever you are.
- Everyday comfort features: Sleep, Turbo, Eco mode, multiple fan speeds, timer functions, and auto-swing louvers.
- Larger-capacity head: 18K indoor head for bigger rooms or higher load spaces.
What's Included
- Indoor wall mount unit: OS-M18SRW-230VI
- Smart Connect (WiFi / app control) module: included

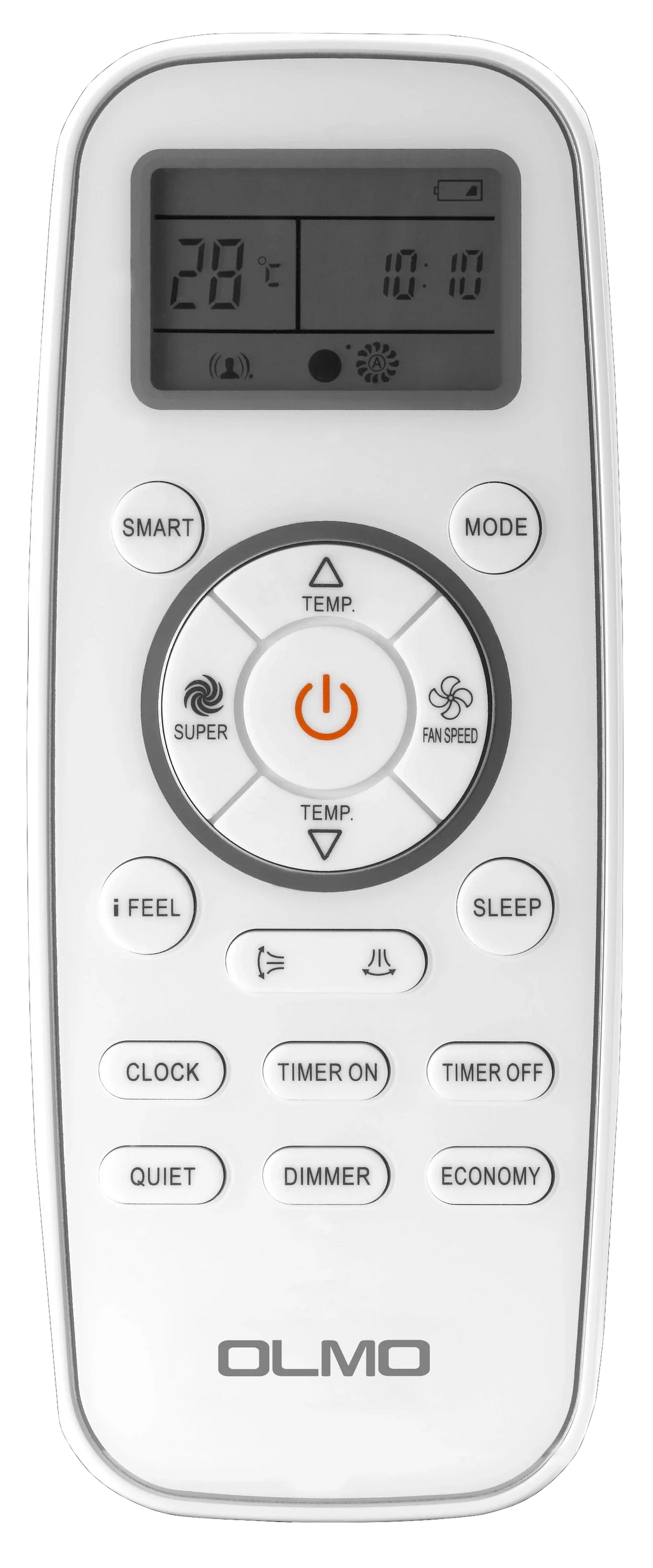

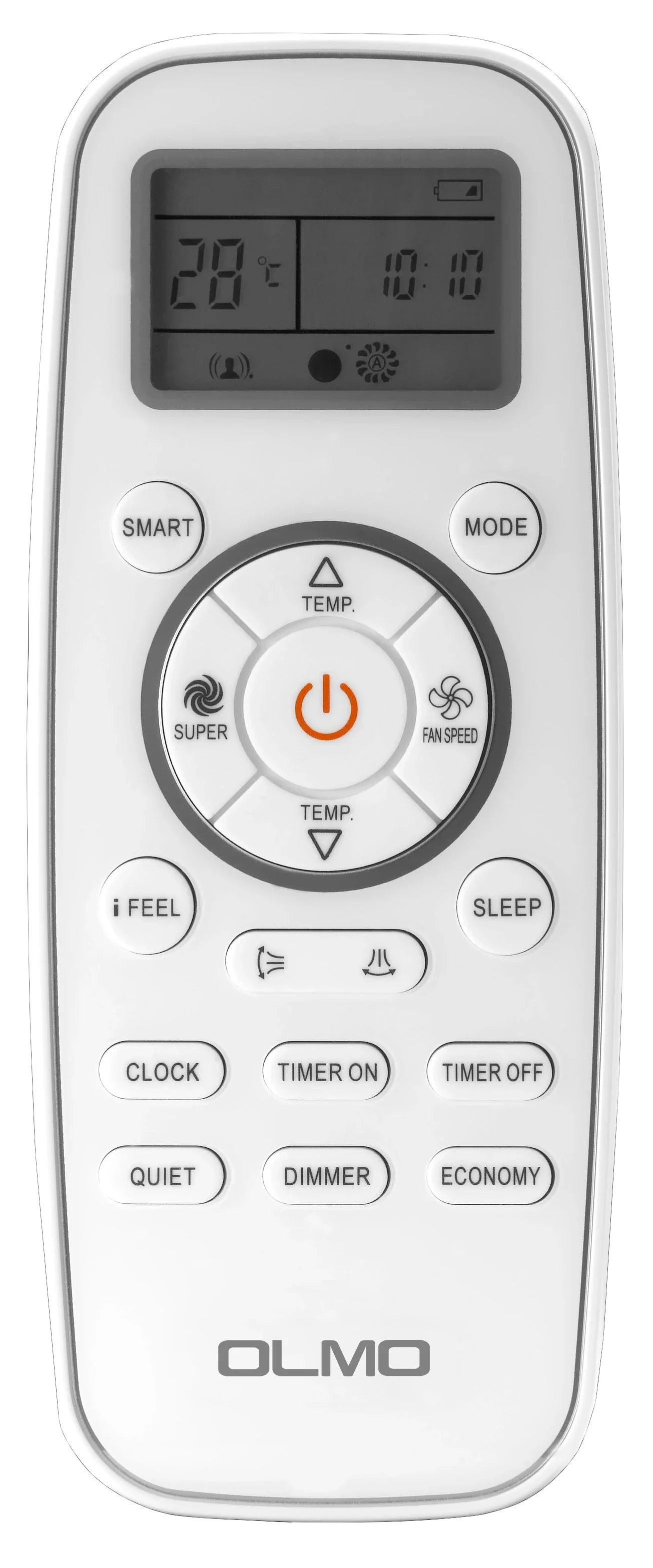

- Remote control (included)
Indoor Specs
| Spec | Details |
|---|---|
| Model | OS-M18SRW-230VI |
| BTU Rated | 18,000 |
| Power Source | 208¨C230V, 1Ph, 60Hz |
| Voltage Range | 187¨C253 V |
| Refrigerant Piping (Liquid / Gas) | 1/4" ¨C 1/2" |
| Indoor Noise (H/M/L) | 45 / 41 / 37 dB(A) |
| Unit Dimensions (W¡ÁH¡ÁD) | 48.00 ¡Á 12.63 ¡Á 9.25 in |
| Unit Net / Gross Weight | 31.97 / 37.48 lb |
| Packing Dimensions (W¡ÁD¡ÁH) | 51.75 ¡Á 15.44 ¡Á 12.50 |
Videos
Documents & Downloads
Important
Installed by a licensed HVAC professional. This is an indoor wall-mount unit intended to be matched with a compatible Olmo Multi-Sierra outdoor system. Confirm electrical requirements (208¨C230V) and piping sizes (1/4" liquid, 1/2" gas) before ordering.
