Olmo 8,000 BTU Smart Window / TTW Through-Wall AC ¨C Heat & Cool 115V
Olmo 8,000 BTU Smart Window / TTW Through-Wall AC ¨C Heat & Cool 115V
Olmo 8,000 BTU Smart Window / TTW Through-Wall AC ¨C Heat & Cool 115V
Video
Summary

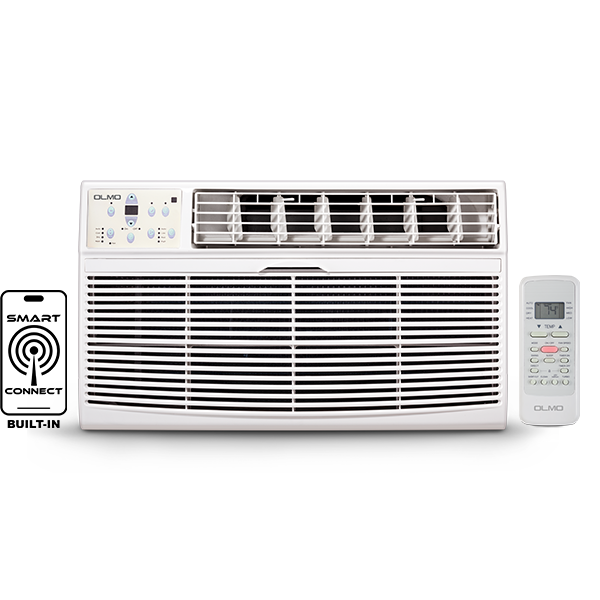

The OLMO Through-The-Wall (TTW) Air Conditioner is a versatile, high-performance cooling and heating solution designed for homes, apartments, offices, and light commercial spaces. With an 8,000 BTU cooling capacity and supplemental electric heat, this wall-mounted unit helps deliver comfort across seasons.

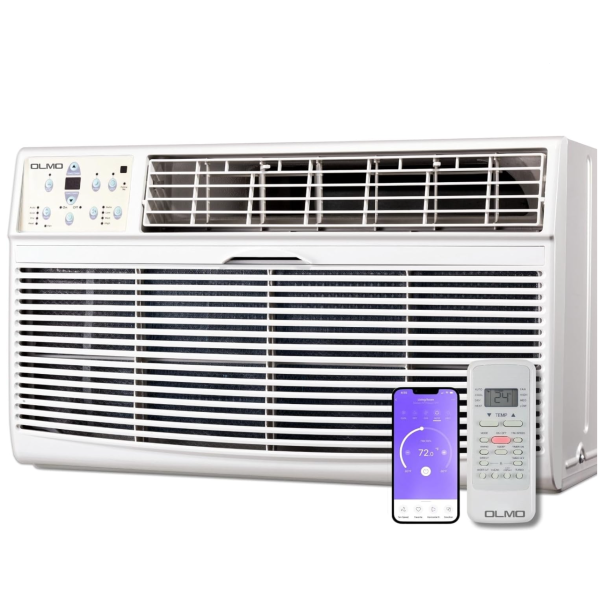

Control is simple with the included remote, and Smart Connect Wi-Fi compatibility lets you manage temperature, fan speed, and modes from your smartphone¡ªideal for adjusting comfort while away from home.
Other advanced features include:
- Sleep Mode for quiet, energy-efficient nighttime operation
- 24-hour timer for customizable schedules
- Auto restart to restore settings after power interruptions
- Self-evaporating system for simpler maintenance

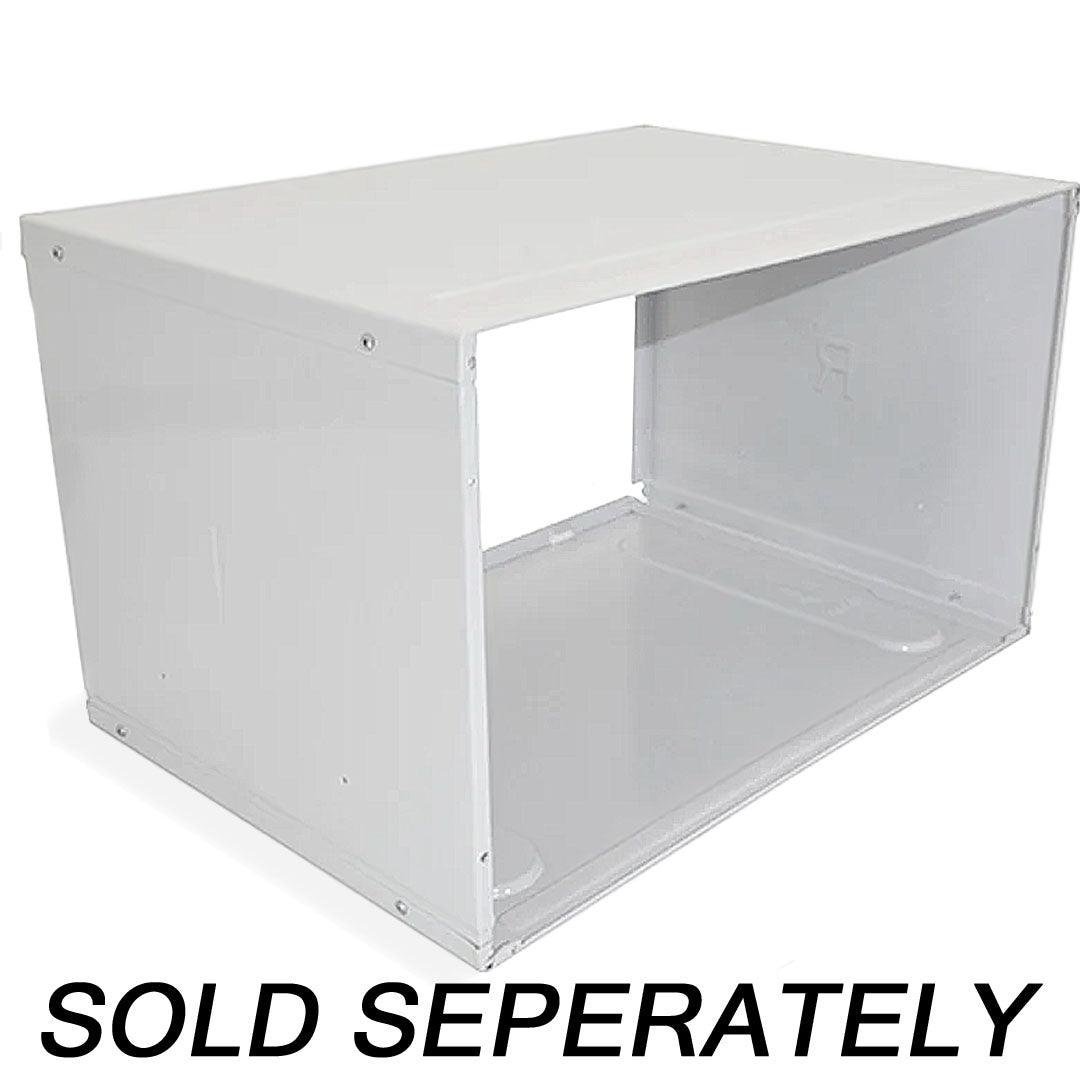

- Optional wall sleeve for cleaner installation
Whether you¡¯re replacing an older through-the-wall unit or installing in an apartment, office, or guest space, the OW-P08HS115WF balances modern controls with reliable performance.
What's Included
- OLMO TTW Air Conditioning Unit OW-P08HS115WF (8,000 BTU, 115V through-the-wall unit with Smart Connect capabilities; heating and cooling)
- Optional sleeve (MUST BE SELECTED ABOVE)

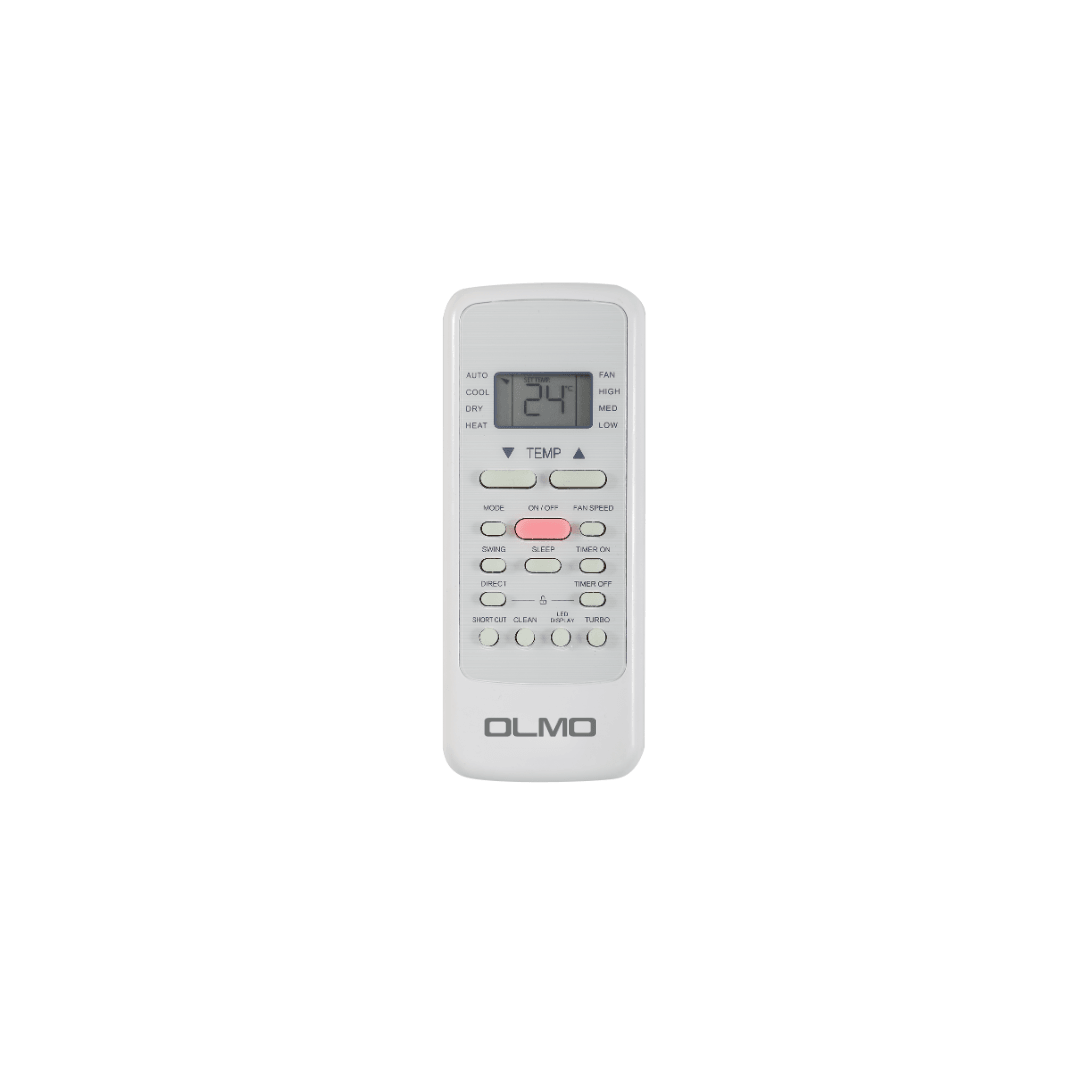

- Wireless remote control
- Installation Manual
- User¡¯s Manual
- Manufacturer warranty
Other Through The Wall Units
OLMO PTAC Units (Packaged Terminal Air Conditioner)
| Capacity | SKU |
| 9,000 BTU 230V Heating and Cooling PTAC | |
| 12,000 BTU 230V Heating and Cooling PTAC | |
| 15,000 BTU 230V Heating and Cooling PTAC |
Cooper&Hunter PTAC (Packaged Terminal Air Conditioner)
| Capacity | SKU |
| 9,000 BTU 230V Heating and Cooling PTAC | |
| 12,000 BTU 230V Heating and Cooling PTAC | |
| 15,000 BTU 230V Heating and Cooling PTAC |
OLMO TTW (Through The Wall Air Conditioner)
| Capacity | SKU |
| 8,000 BTU 115V Cooling Only | |
| 8,000 BTU 115V Heating and Cooling | |
| 12,000 BTU 115V Cooling Only | OW-P12AC115WF |
| 12,000 BTU 230V Cooling Only | OW-P12AC230WF |
| 12,000 BTU 230V Heating and Cooling | OW-P12HS230WF |
| 14,000 BTU 230V Cooling Only | OW-P14AC230WF |
| 14,000 BTU 230V Heating and Cooling | OW-P14HS230WF |
Technical Information
Model Number: OW-P08HS115WF
| Specification | Details |
|---|---|
| Waterproof Class | IP24 |
| SEER2 (up to) | 9.6 |
| Refrigerant Type | R32 |
| Refrigerant Oil / Oil Charge | VG68 6.4 |
| Plug Type | LCDI (5-15P) |
| Packing Dimensions (WxDxH) | 27.95 x 26.57 x 16.93 in |
| Locked Rotor (LRA) (A) | 36 |
| Heating HS Capacity (Btu/h) | 4,200 |
| EER (up to) | 3.13 |
| Compressor Type | Rotary |
| Compressor Input (W) | 577 |
| Compressor Capacity (W) | 2,395 |
| Capacitor | 50 |
| Unit Net/Gross Weight | 66.80 / 77.16 lbs |

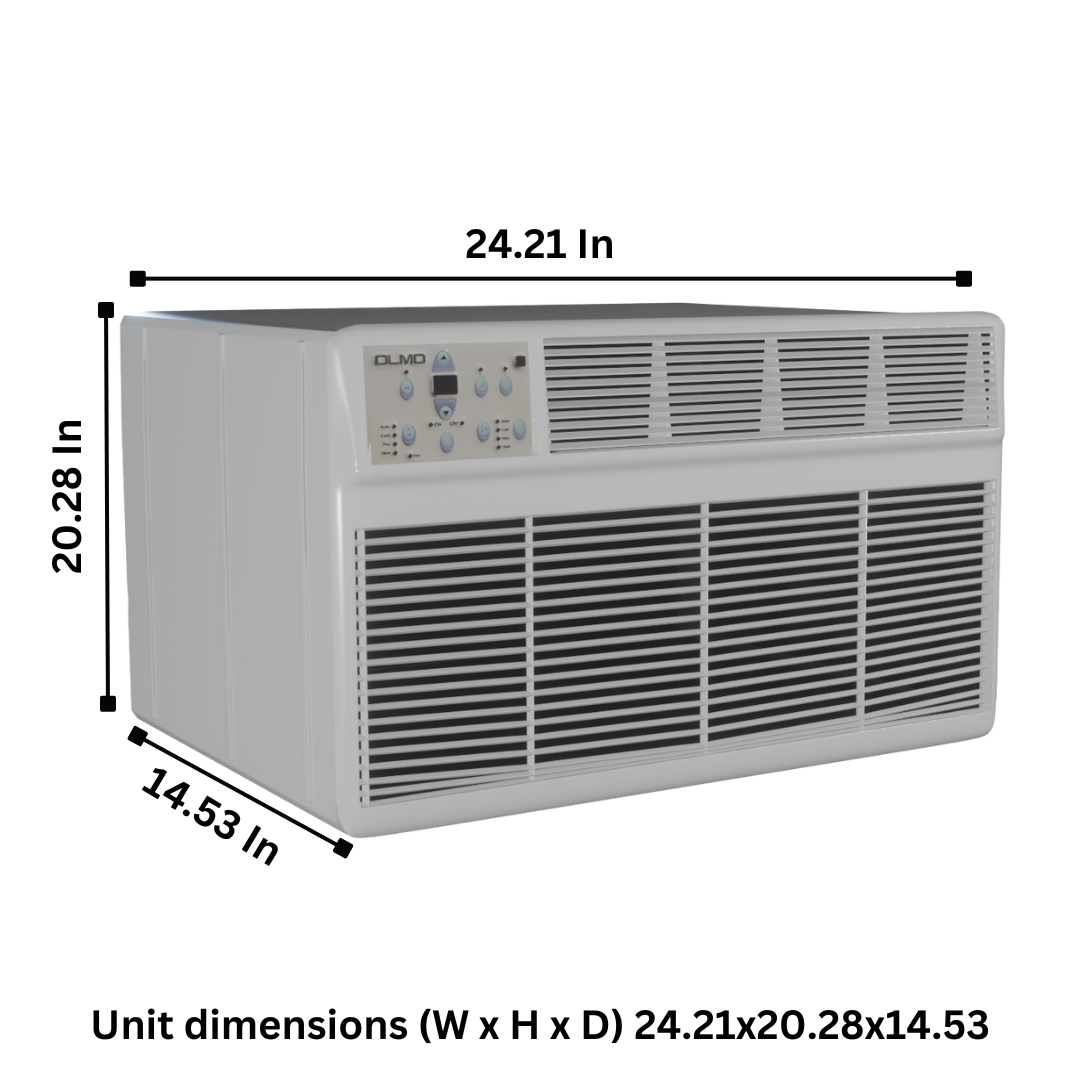

| Unit Dimensions (WxDxH) | 24.21 x 20.28 x 14.53 in |
| Rated Current (Cooling) | 5.10 A |
| Power Source | 115V, 1Ph, 60Hz |
| Outdoor Noise Level (dB) | 63.5 / 59.7 / 55.9 |
| Outdoor Air Flow | 259 / 227 / 192 |
| Electrical Heating Input (Heat) | 1,220 W |
| Electrical Heater Current | 11 A |
| Design Pressure (PSI) | 300 / 520 |
| Cooling Capacity (Nominal) | 8,000 Btu/h |
| Cooling Input (W) | 750 |
?
Certifications![]()
Performance Data / Features
- Wi-Fi enabled (Smart Connect)
- Flexible use: residential, hotels, and light commercial applications
- Remote control included
- 1-year limited warranty
- Premium tech support
Manuals & Downloads
- OLMO TTW Leaflet ¡ª reference by document title
- User¡¯s Manual ¡ª reference by document title
- Installation Manual ¡ª reference by document title
- General Manufacturing Information (OW-P08HS115WF) ¡ª reference by document title
?
