Olmo 12,000 BTU Smart Window / TTW Through-Wall AC ¨C Heat & Cool 230V
Olmo 12,000 BTU Smart Window / TTW Through-Wall AC ¨C Heat & Cool 230V
Olmo 12,000 BTU Smart Window / TTW Through-Wall AC ¨C Heat & Cool 230V
Video
Summary
The OLMO Through-The-Wall (TTW) Air Conditioner is a versatile, high-performance cooling and heating solution designed for homes, apartments, offices, and light commercial spaces. With a 12,000 BTU capacity, this energy-efficient wall-mounted unit delivers strong cooling with supplemental electric heat for year-round comfort.
Use the included remote to adjust temperature, fan speed, and modes from anywhere in the room. Smart Connect Wi-Fi compatibility adds convenient smartphone control¡ªideal for managing your space while at work or away.
Other advanced features include:
- Sleep mode for quiet, energy-efficient nighttime operation
- 24-hour timer for customizable cooling and heating schedules
- Auto restart to restore settings after power interruptions
- Self-evaporating system for simpler maintenance

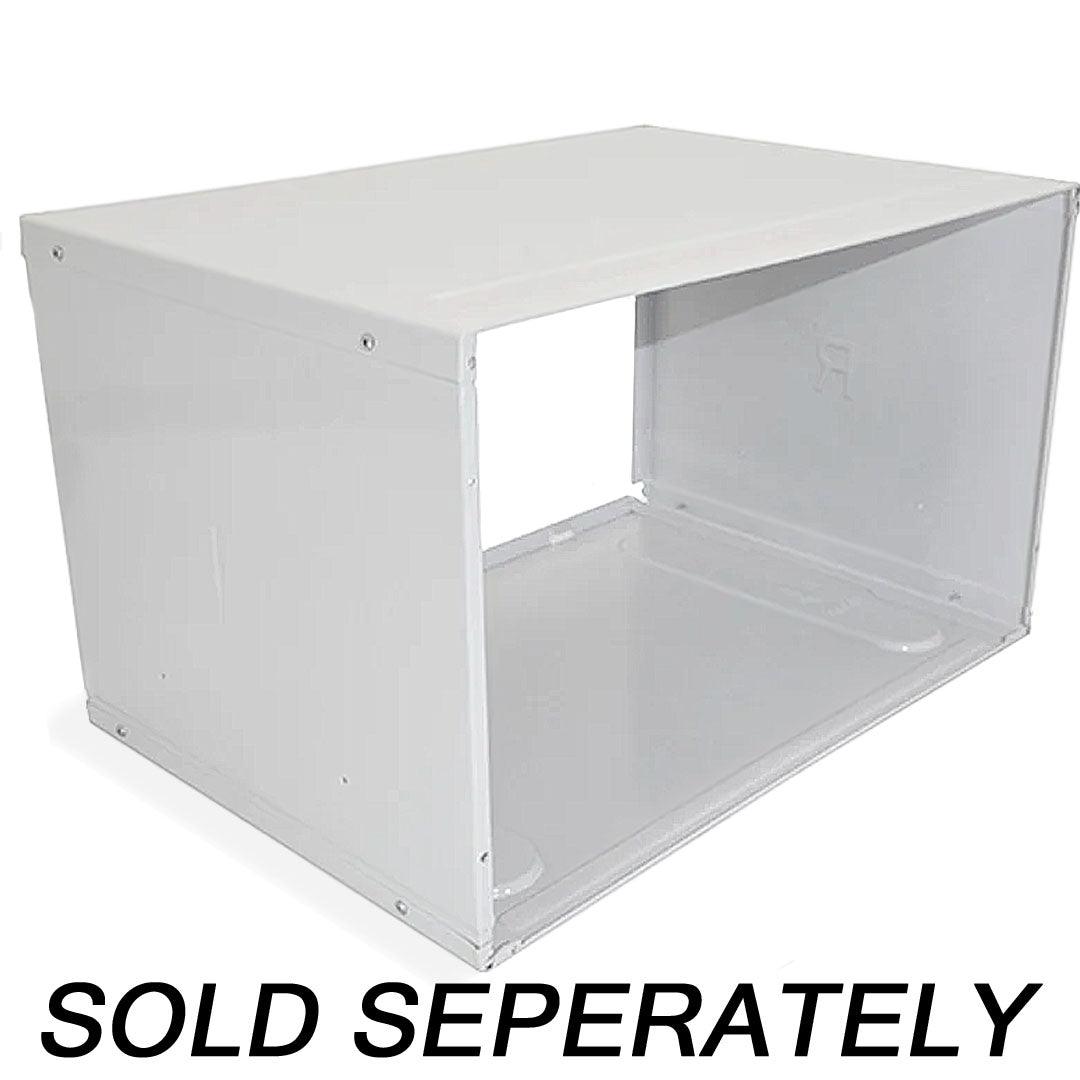

- Optional wall sleeve for a cleaner installation
Whether you¡¯re upgrading your HVAC setup, replacing an older unit, or specifying a reliable through-the-wall air conditioner for a property, the OW-P12HS230WF offers a strong balance of performance, efficiency, and modern controls.
What's Included

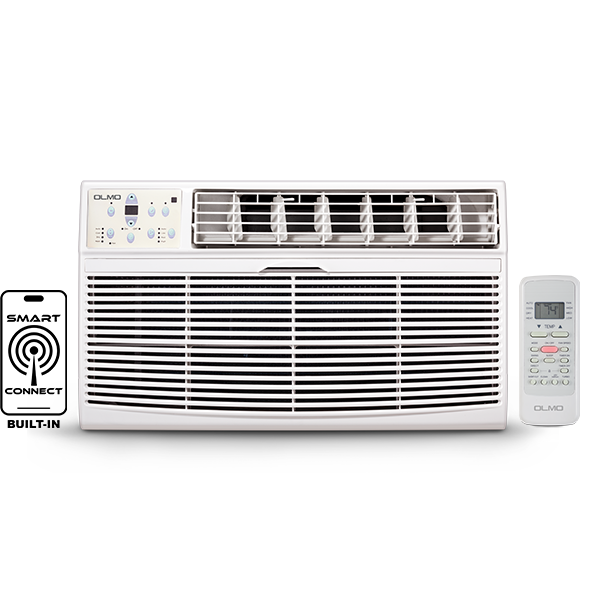

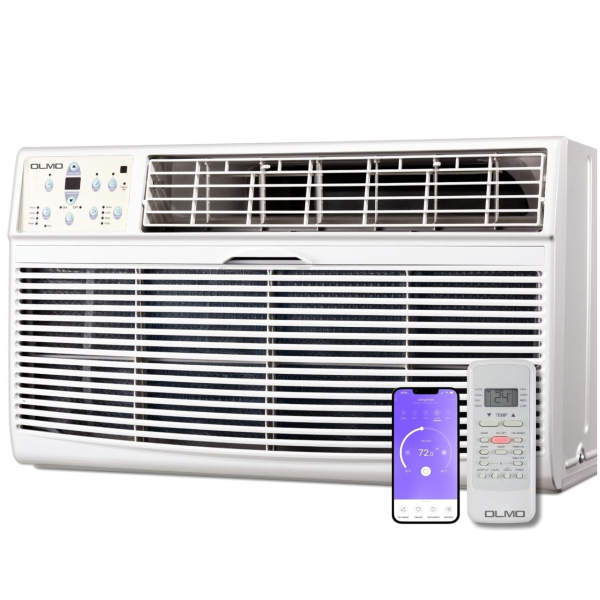

- OLMO TTW Air Conditioning Unit (12,000 BTU, 230V through-the-wall unit with Smart Connect capabilities; heating and cooling)
- Optional sleeve (MUST BE SELECTED ABOVE)

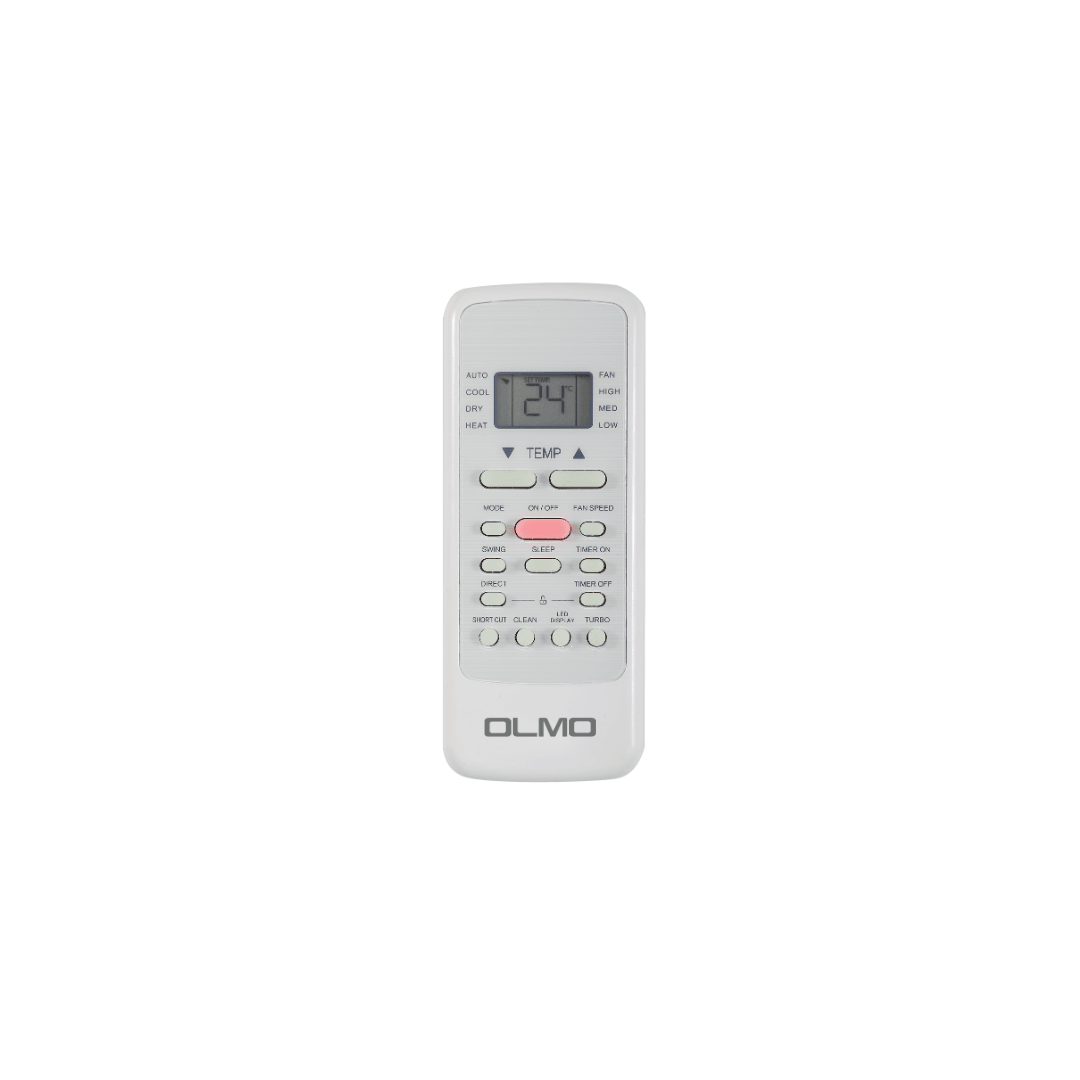

- Wireless remote control
- Installation Manual
- User¡¯s Manual
- Manufacturer warranty
Other Through The Wall Units
OLMO PTAC Units (Packaged Terminal Air Conditioner)
| Capacity | SKU |
| 9,000 BTU 230V Heating and Cooling PTAC | |
| 12,000 BTU 230V Heating and Cooling PTAC | |
| 15,000 BTU 230V Heating and Cooling PTAC |
Cooper&Hunter PTAC (Packaged Terminal Air Conditioner)
| Capacity | SKU |
| 9,000 BTU 230V Heating and Cooling PTAC | |
| 12,000 BTU 230V Heating and Cooling PTAC | |
| 15,000 BTU 230V Heating and Cooling PTAC |
OLMO TTW (Through The Wall Air Conditioner)
| Capacity | SKU |
| 8,000 BTU 115V Cooling Only | |
| 8,000 BTU 115V Heating and Cooling | |
| 12,000 BTU 115V Cooling Only | OW-P12AC115WF |
| 12,000 BTU 230V Cooling Only | OW-P12AC230WF |
| 12,000 BTU 230V Heating and Cooling | OW-P12HS230WF |
| 14,000 BTU 230V Cooling Only | OW-P14AC230WF |
| 14,000 BTU 230V Heating and Cooling | OW-P14HS230WF |
Technical Information
Model Number: OW-P12HS230WF
| Specification | Details |
|---|---|
| Waterproof Class | IP24 |
| SEER2 Rating | Up to 9.5 |
| Refrigerant Type | R32 |
| Refrigerant Oil / Oil Charge | VG68 / 10.1 |
| Plug Type | LCDI (6-20P) |
| Packing Dimensions (WxDxH) | 27.95 x 26.57 x 16.93 inches |
| Locked Rotor (LRA) (A) | 28.5 |
| Heating HS Capacity (Btu/h) | 10,600 / 8,600 |
| EER Rating | Up to 2.98 / 2.95 |
| Compressor Type | Rotary |
| Compressor Input (W) | 850 / 875 |
| Compressor Capacity (W) | 3,590 / 3,620 |
| Capacitor | 35 |
| Unit Net/Gross Weight (lbs) | 74.96 / 85.76 |

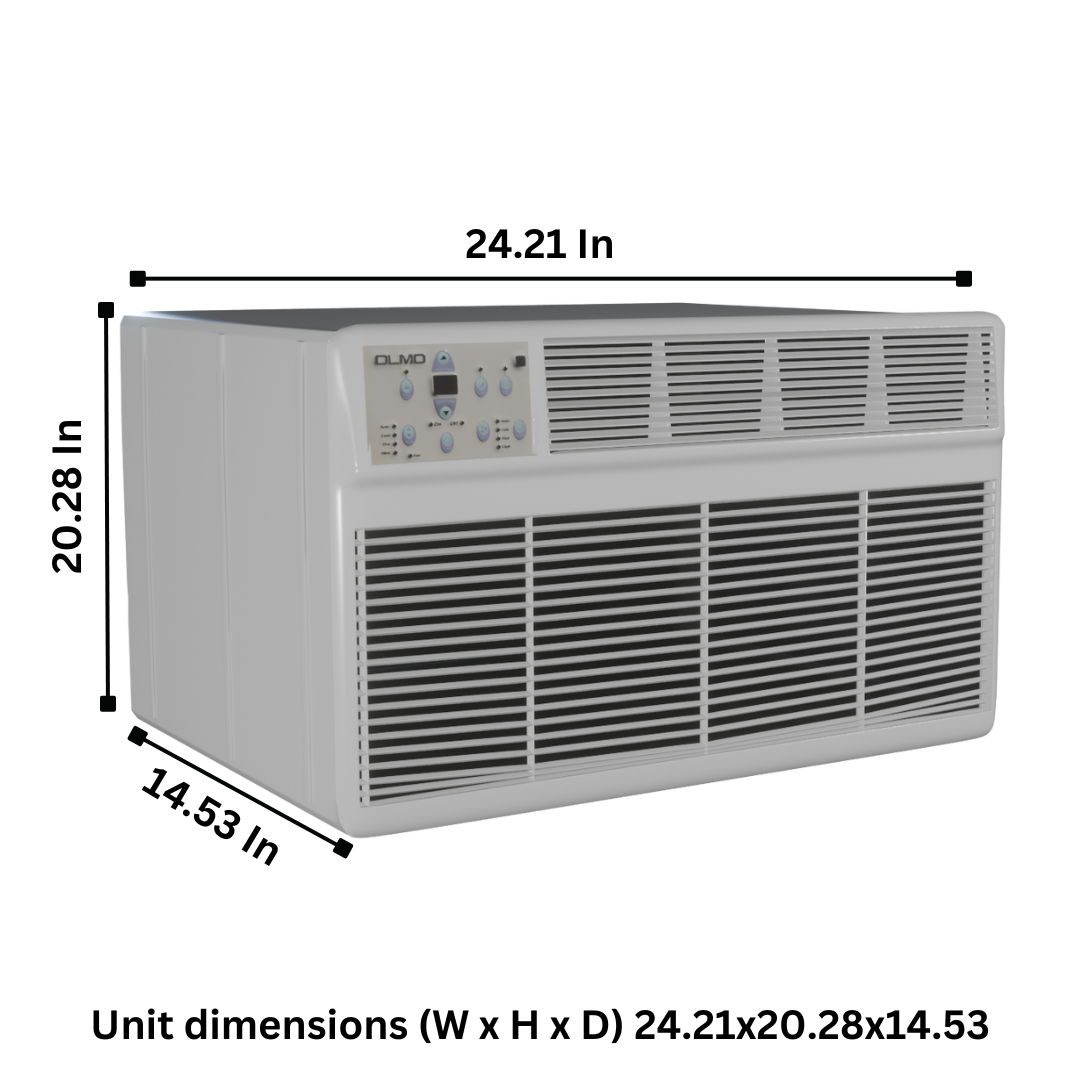

| Unit Dimensions (WxDxH) | 24.21 x 20.28 x 14.53 inches |
| Rated Current (Cooling) | 4.18 / 3.85 A |
| Power Source | 208-230V, 1Ph, 60Hz |
| Outdoor Noise Level (dB) | 65.4 / 63.2 / 61.1 |
| Outdoor Air Flow (CFM) | 274 / 252 / 231 |
| Electrical Heating Input (W) | 3,450 / 2,821 |
| Electrical Heater Current (A) | 15 / 13.5 |
| Design Pressure (PSI) | 300 / 520 |
| Cooling Capacity (Nominal) | 12,000 / 11,700 BTU |
| Cooling Power (kW) | 1,180 / 1,160 |
?
Certifications![]()
Performance Data / Features
- Wi-Fi enabled (Smart Connect)
- Flexible use: residential, hotels, and light commercial applications
- Remote control included
- 1-year limited warranty
- Premium tech support
Manuals & Downloads
- OLMO TTW Leaflet ¡ª reference by document title
- User¡¯s Manual ¡ª reference by document title
- Installation Manual ¡ª reference by document title
- General Manufacturing Information (OW-P12HS230WF) ¡ª reference by document title
?
