Product overview

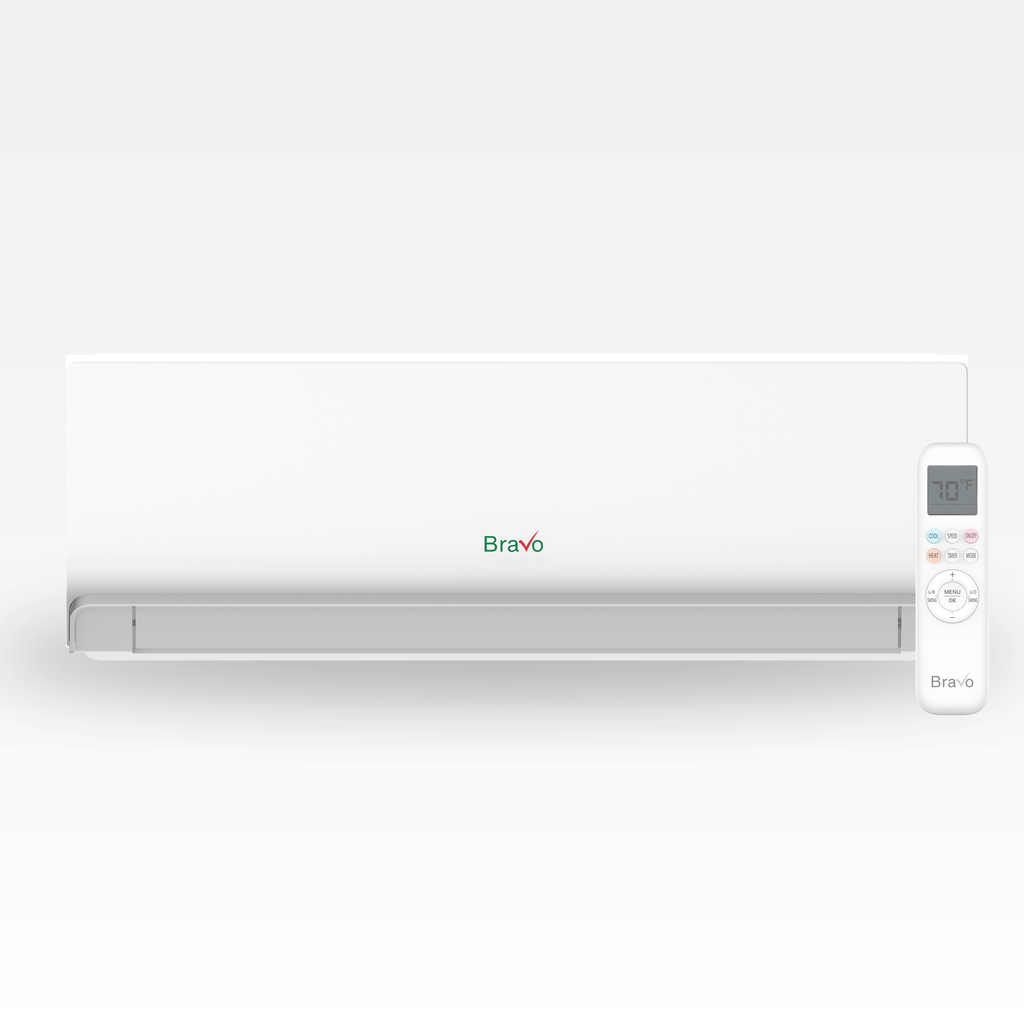

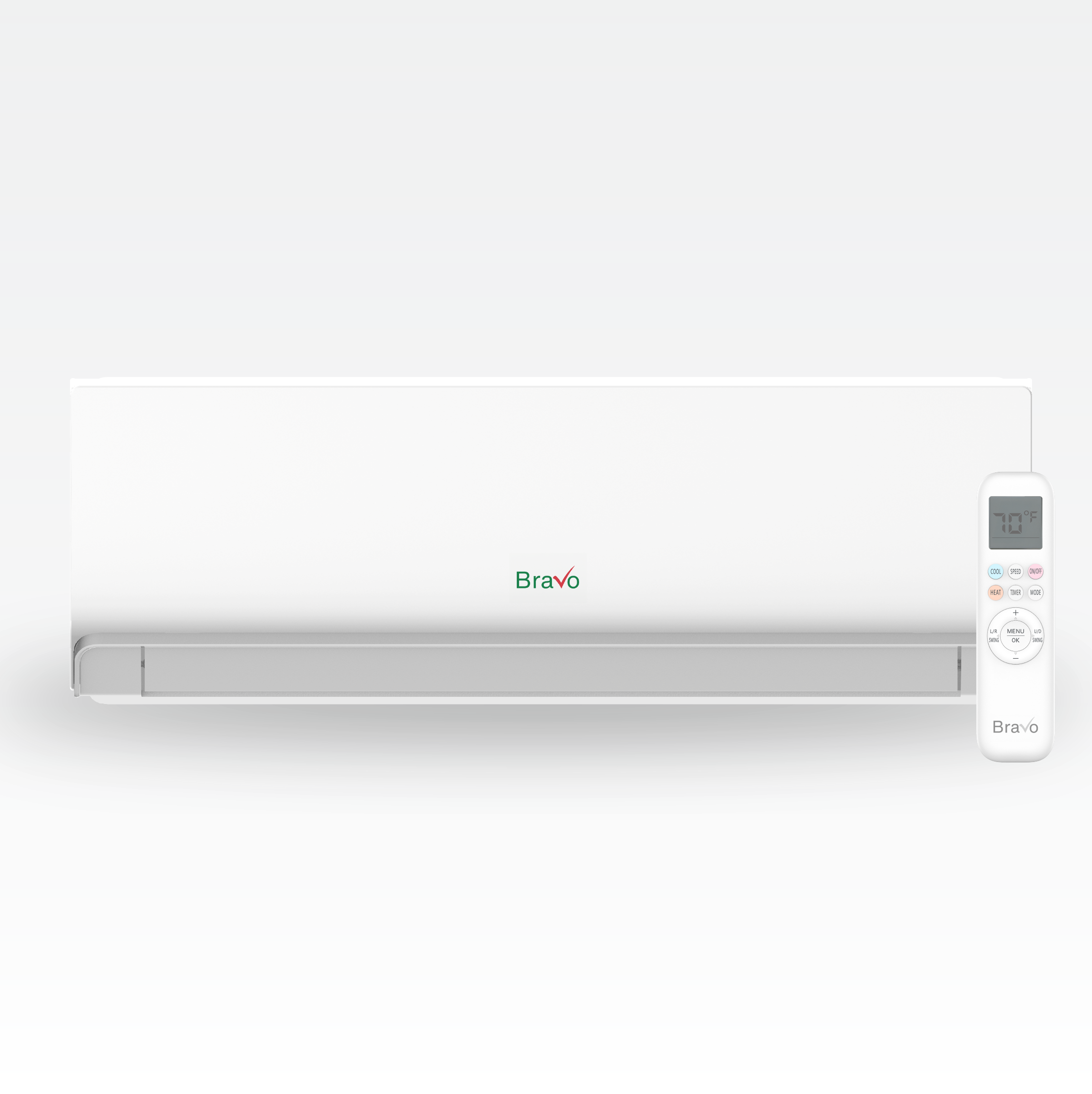

The BRV-M12WM-230VI is a 12,000 BTU wall-mounted indoor unit designed for Bravo Milano multi-zone systems. It delivers quiet, inverter-driven comfort with smart app control (when paired with compatible system components), making it a strong fit for bedrooms, living areas, and home offices.
Contact
for custom quotes & questions, or call .
Quick facts
- Capacity: 12,000 BTU (cooling) / 12,300 BTU (heating rated)
- Voltage: 208¨C230V, 1Ph, 60Hz
- Indoor airflow: 353 CFM
- Indoor sound: 42 dB(A)
- Line set: 1/4" liquid / 3/8" gas
- Controls: Wireless remote + smart app capable (system-dependent)
Features
BRAVO ¨C More than a compliment!
- Wall-mounted indoor unit for targeted room-by-room comfort
- Inverter-driven operation for stable temperature control (system efficiency depends on outdoor match)
- Super / Turbo mode for rapid cooling or heating
- Silent function for reduced sound levels
- Sleep Mode with gentle setpoint transitions
- Eco Mode for reduced power use
- Multiple fan speeds + timer scheduling
- Auto swing louvers for more even air distribution
- Anti-mildew / self-cleaning mode to help keep the coil cleaner
- Follow Me function (senses temperature near the remote)
- Activated carbon filter to help improve indoor air quality
- LED display with clear status indication
Video
Other wall-mount indoor units
| 9,000 BTU | |
|---|---|
| 12,000 BTU | |
| 18,000 BTU | |
| 24,000 BTU |
What¡¯s included
- Indoor wall-mount unit ¡ª BRV-M12WM-230VI
- Wireless remote control
- Installation manual
- User¡¯s manual
- Manufacturer limited warranty
Note: An installation kit (selected above, if applicable) is required for operation and typically includes pre-flared copper lines, communication wire, drain components, wrapping, and related accessories.
Technical specifications ¡ª BRV-M12WM-230VI
| Indoor model | BRV-M12WM-230VI |
|---|---|
| Power supply | 208¨C230V, 1Ph, 60Hz |
| Cooling capacity | 12,000 BTU/h |
| Heating rated capacity | 12,300 BTU/h |
| Max fuse | 5 A |
| Indoor airflow | 353 CFM |
| Indoor noise level | 42 dB(A) |
| Unit dimensions (W¡ÁD¡ÁH) | 34.49 ¡Á 11.73 ¡Á 7.64 in |
| Packing dimensions (W¡ÁD¡ÁH) | 37.99 ¡Á 14.57 ¡Á 11.10 in |
| Net / gross weight | 19.80 / 24.27 lbs |
| Refrigerant piping (liquid / gas) | 1/4" / 3/8" |
| Operating temperature range (indoor) | 60.8¨C89.6¡ãF |
Warranty
- 3-year compressor limited warranty
- 3-year parts limited warranty (installation by a licensed HVAC technician required)
Registration is required within 60 days of installation. See manufacturer documentation for terms and conditions.
Important installation notes
- All units must be installed by a licensed HVAC professional for warranty eligibility.
- Proper sizing, line set selection, evacuation, and commissioning are required for performance and reliability.
- Installation kit is necessary for the system to function (lines, comm wire, drain components, wrapping, hardware).
Full description
The Bravo Milano wall-mount indoor unit lineup delivers efficient, room-by-room comfort with a clean, modern look and quiet operation. This 12,000 BTU model is a strong fit for many medium-sized rooms when matched with the correct multi-zone outdoor condenser and installed to spec.
Inverter-driven control helps maintain a more stable indoor temperature, while convenience features like Turbo mode, Sleep mode, and multi-speed fan control make daily comfort easy. With smart app capability (system-dependent) and a compact wall-mounted form factor, it¡¯s a flexible solution for upgrades and new installs alike.
