Product Overview
Ductless mini split indoor unit for flexible low-wall (floor) or ceiling installation. Designed for larger zones that need strong airflow and focused room comfort.
Badges
- Universal floor/ceiling mount
- 24,000 BTU capacity
- 208¨C230V ? 1Ph ? 60Hz
- Remote & wall thermostat
- Low noise 44 dB(A)
Contact
???
Performance features
- Universal cabinet ¡ª mounts on floor (low wall) or ceiling
- Wireless remote control included
- Wall thermostat included/compatible for precise setpoint control
- Multiple fan speeds with high 824 CFM airflow
- Auto-restart after power interruption
- Quiet operation ¡ª as low as 44 dB(A)
Watch: Product overview
At-a-glance
| Mounting type | Floor (low wall) or ceiling |
|---|---|
| Cooling capacity | 24,000 Btu/h |
| Heating capacity | 24,000 Btu/h |
| Airflow | 824 CFM |
| Noise level | 44 dB(A) |
| Power | 208¨C230V ? 1Ph ? 60Hz |
What¡¯s included

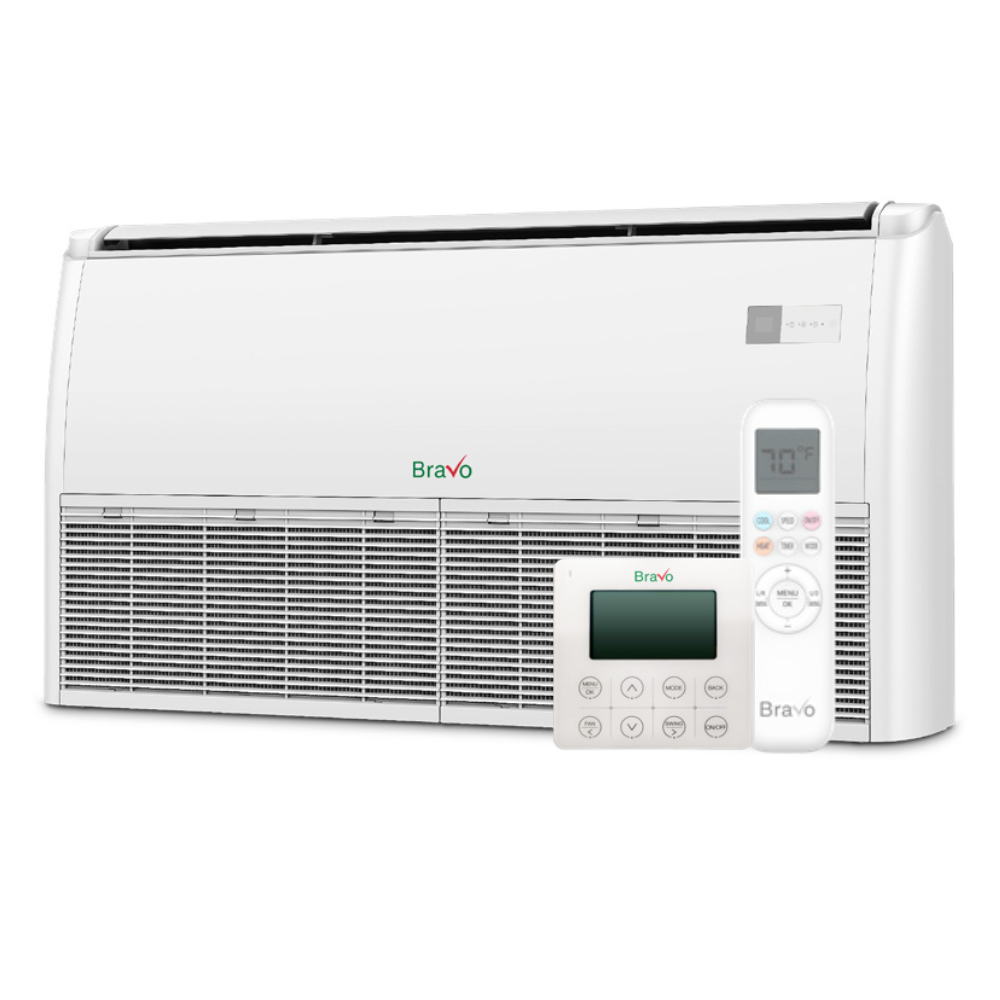

- UFC indoor unit ¡ª BRV-M24FC-230VI
- Wireless remote control
- Wall thermostat (included for UFC models)
- Mounting hardware & manuals
For warranty coverage, installation by a licensed HVAC professional may be required; see current manufacturer documentation.
Technical specifications
| Indoor model | BRV-M24FC-230VI |
|---|---|
| Power supply | 208¨C230 / 1 / 60 |
| Cooling rated capacity | 24,000 Btu/h |
| Heating rated capacity | 24,000 Btu/h |
| Max fuse | 5 A |
| Indoor airflow | 824 CFM |
| Indoor noise level | 44 dB(A) |
| Dimensions | 50.39 ¡Á 27.17 ¡Á 9.25 in (W¡ÁD¡ÁH) |
| Packing dimensions | 53.54 ¡Á 30.32 ¡Á 12.80 in (W¡ÁD¡ÁH) |
| Net / gross weight | 71.7 / 83.8 lbs |
| Refrigerant piping | 1/4¡å (liquid) / 5/8¡å (gas) |
| Operating temp range | 60.8 ¨C 89.6 ¡ãF (indoor) |
Documents
- Owner / Installation Manual (PDF)
- Remote Control Manual (PDF)
- Smart App Guide (PDF)
- Wall Thermostat Guide (PDF)
If you need these files, contact us and we¡¯ll send the latest documents for this model.
Warranty
3-year compressor limited warranty
3-year parts limited warranty (may require installation by a licensed HVAC technician)
Warranty terms and any registration requirements are defined by the manufacturer; confirm the current documentation at time of install.
Full description
Expand
The Bravo Milano UFC 24,000 BTU indoor unit is a universal floor/ceiling solution built for larger zones that need strong airflow and flexible placement. Whether mounted low on a wall or suspended from the ceiling, the cabinet delivers up to 824 CFM of airflow with a low 44 dB(A) sound level for comfortable day-to-day operation.
The UFC ships with a wireless remote and wall thermostat for multiple control options, and pairs with compatible Bravo Milano outdoor condensers for reliable year-round heating and cooling. Inverter-driven operation helps maintain a stable room temperature while improving efficiency compared to fixed-speed systems.
FAQs
Can I mount it on the floor or the ceiling?
Yes. The UFC design supports both low-wall (floor) and ceiling mounting. Follow the installation manual for clearances and mounting details.
Is a thermostat included?
Yes. UFC packages include a wall thermostat in addition to the handheld remote.
What power does it require?
This indoor unit is designed for 208¨C230V, single-phase, 60 Hz. Confirm breaker size, wire gauge, and disconnect requirements per the installation manual and local electrical codes.
