Bravo 36,000 BTU Multi-Position Air Handler Side Discharge Heat Pump Inverter R32 230V
$2,741.76
Bravo ? 36K BTU ? Single Zone Heat Pump ? R32 ? 208-230V
Bravo 36,000 BTU Single Zone Heat Pump System with Multi-Position Air Handler, 208-230V
SKU: BRV-SD36HI-230VO + BRV-MP36AHUW-230VI
Overview
The Bravo 36,000 BTU heat pump system pairs the BRV-SD36HI-230VO outdoor unit with the BRV-MP36AHUW-230VI indoor air handler to deliver dependable year-round comfort for larger residential and light commercial applications. This single-zone system uses R32 refrigerant, operates on 208-230V single-phase power, and is designed for reliable performance across a wide range of outdoor conditions.
The indoor unit features an optimized A-coil, multi-position installation, and support for up to 0.80 in. w.g. external static pressure. The system is also built for easy integration with 24V thermostat controls and compatible third-party setups, while AHRI and ETL certifications support dependable, standards-compliant operation.
Highlights
36,000 BTU class Single-zone system 208-230V, 1Ph, 60Hz R32 refrigerant 17.0 SEER2 Multi-position air handler ECM constant torque motor 0.80 in. w.g. ESP 24V thermostat compatible Optional aux heat kit Crankcase heater standard
- Efficient performance: This pairing is rated at 17.0 SEER2 and 10.4 EER2 in the provided specs.
- Flexible installation: Supports horizontal left, horizontal right, vertical up, and vertical down configurations.
- Consistent airflow: ECM fan motor uses constant torque technology for dependable air delivery in demanding applications.
- External static pressure: Supports up to 0.80 in. w.g. for more flexible ducted system design.
- Optional insulation upgrade: 1 inch R4.2 fiberglass-free insulation helps reduce condensation and improve efficiency.
- Auxiliary heat ready: Supports an optional electric heat kit up to 20kW for enhanced heating capability.
- Control flexibility: Compatible with 24V thermostat controls, and the provided feature list also notes a wired controller with built-in WiFi.
- Adaptive operation: Adaptive Control System helps optimize performance across changing conditions.
- Cold-weather protection: Crankcase heater comes equipped as standard.
- Service-friendly design: Built for easy maintenance and dependable long-term use.

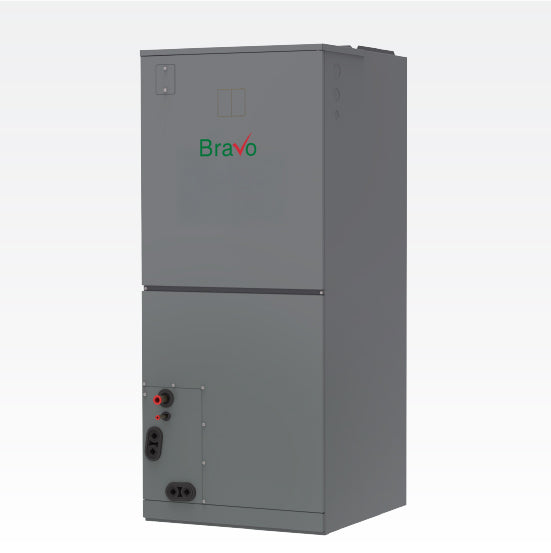

Indoor BRV-MP36AHUW-230VI

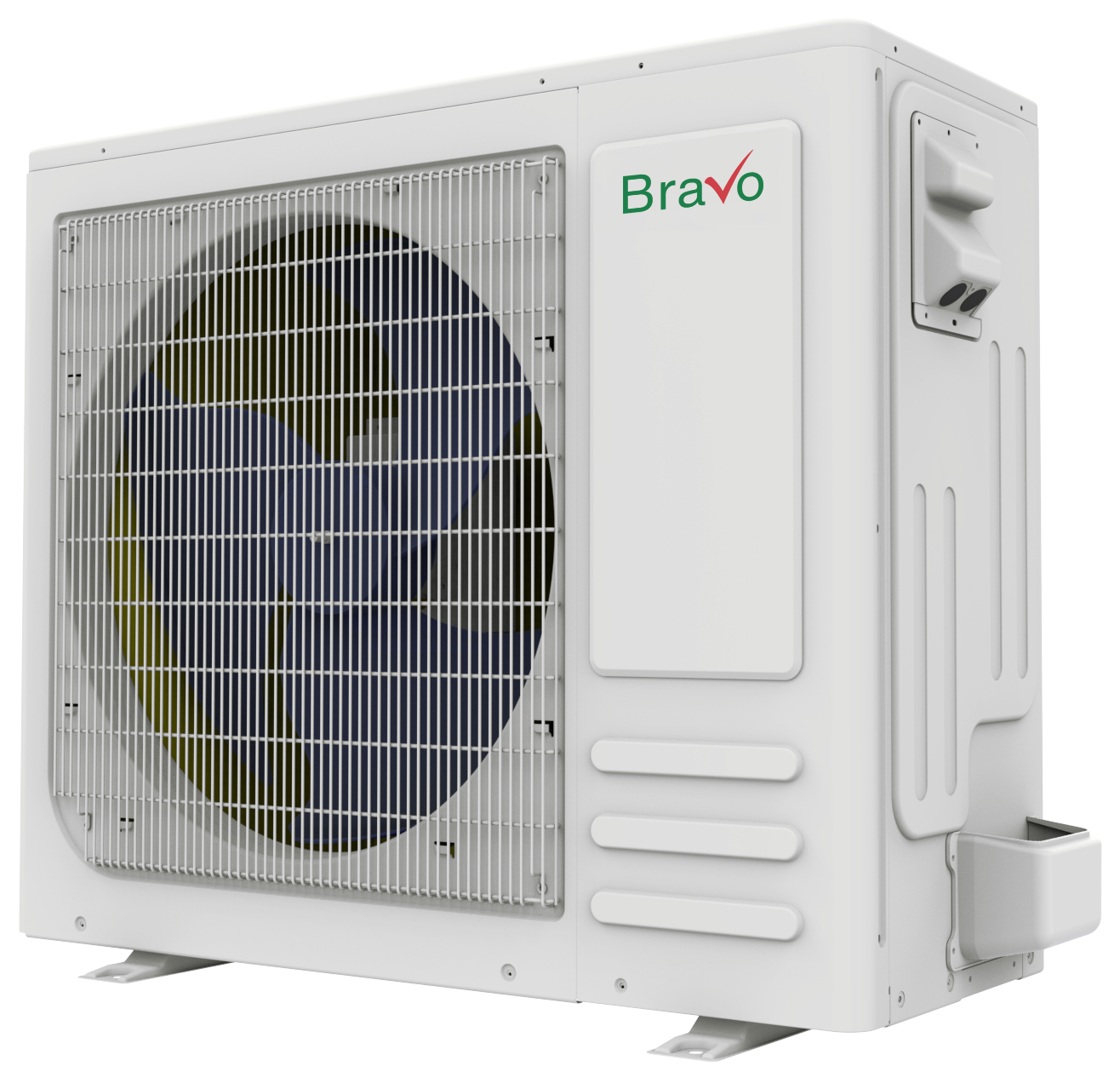

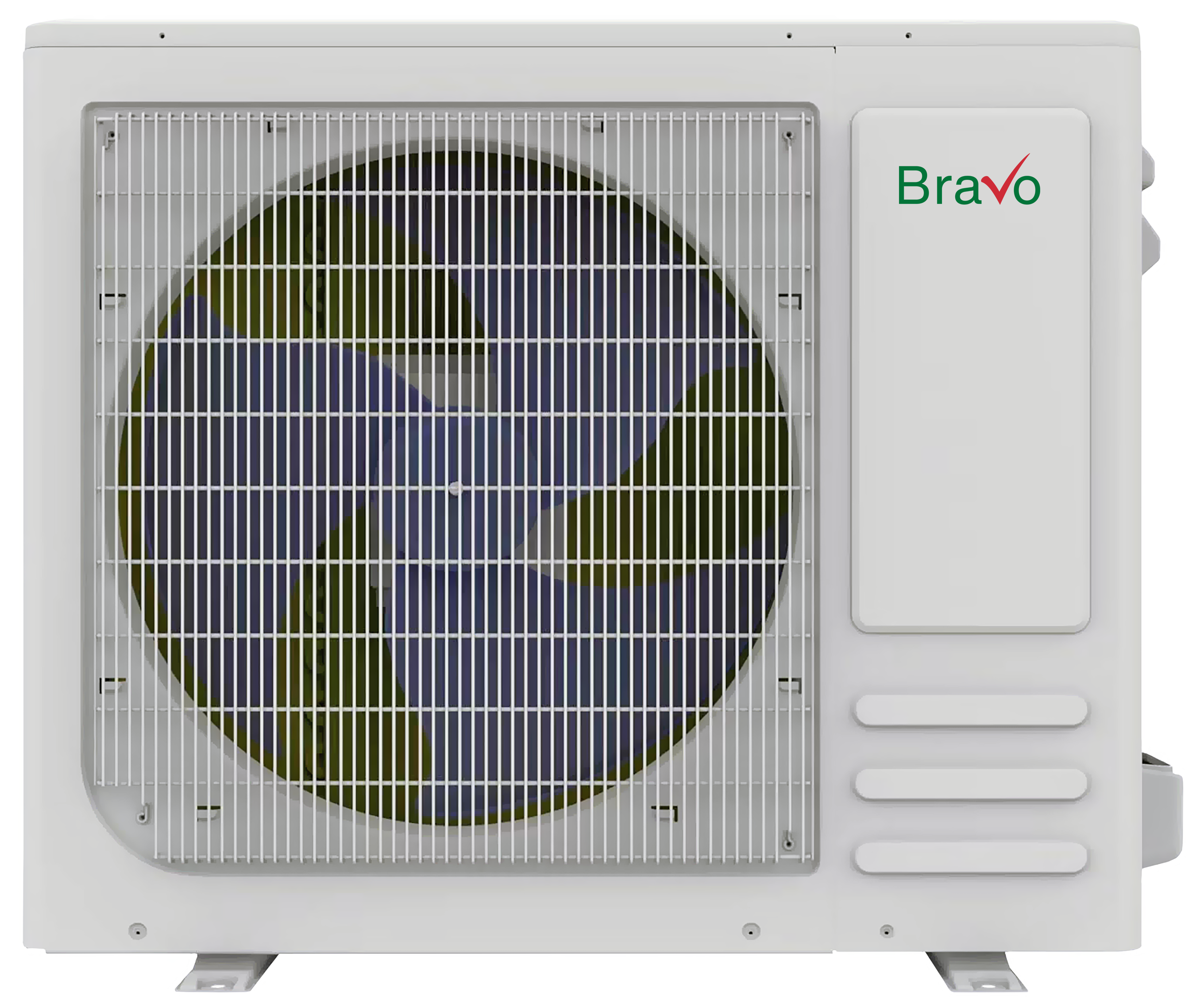

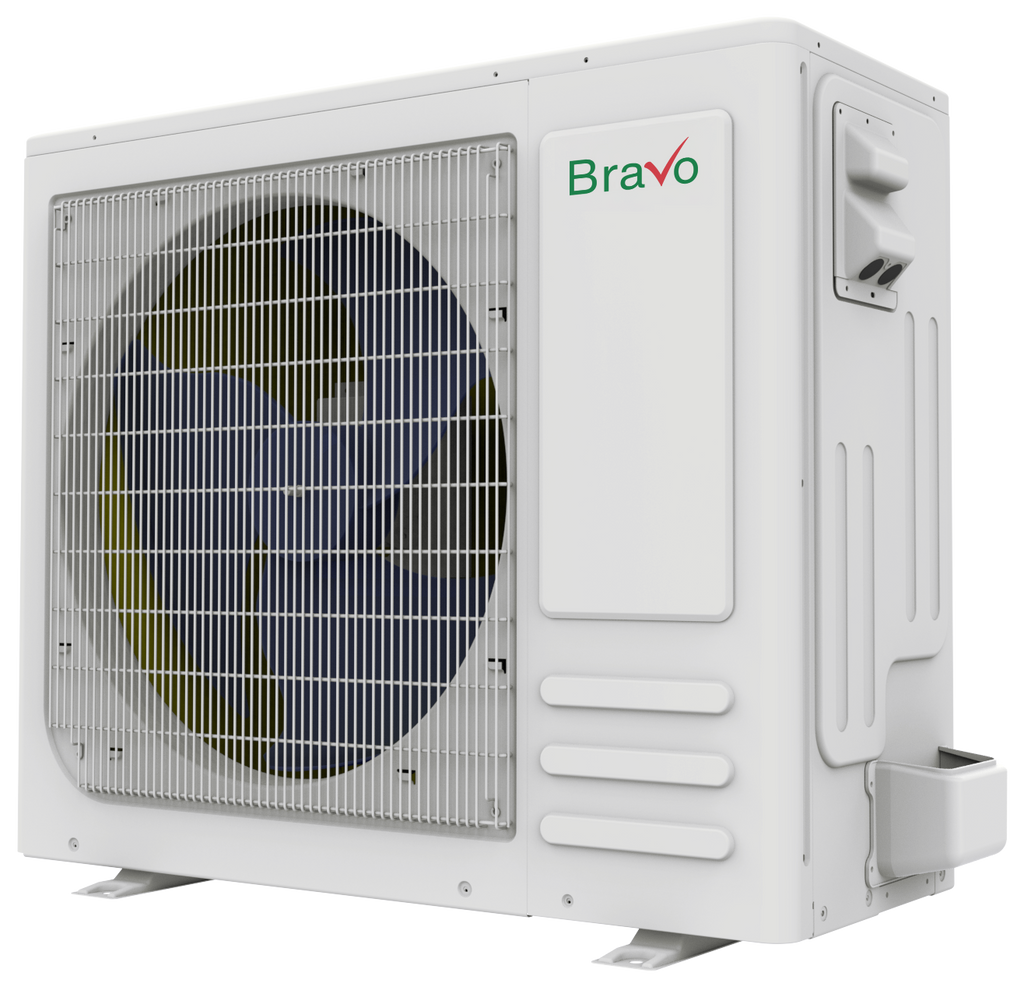

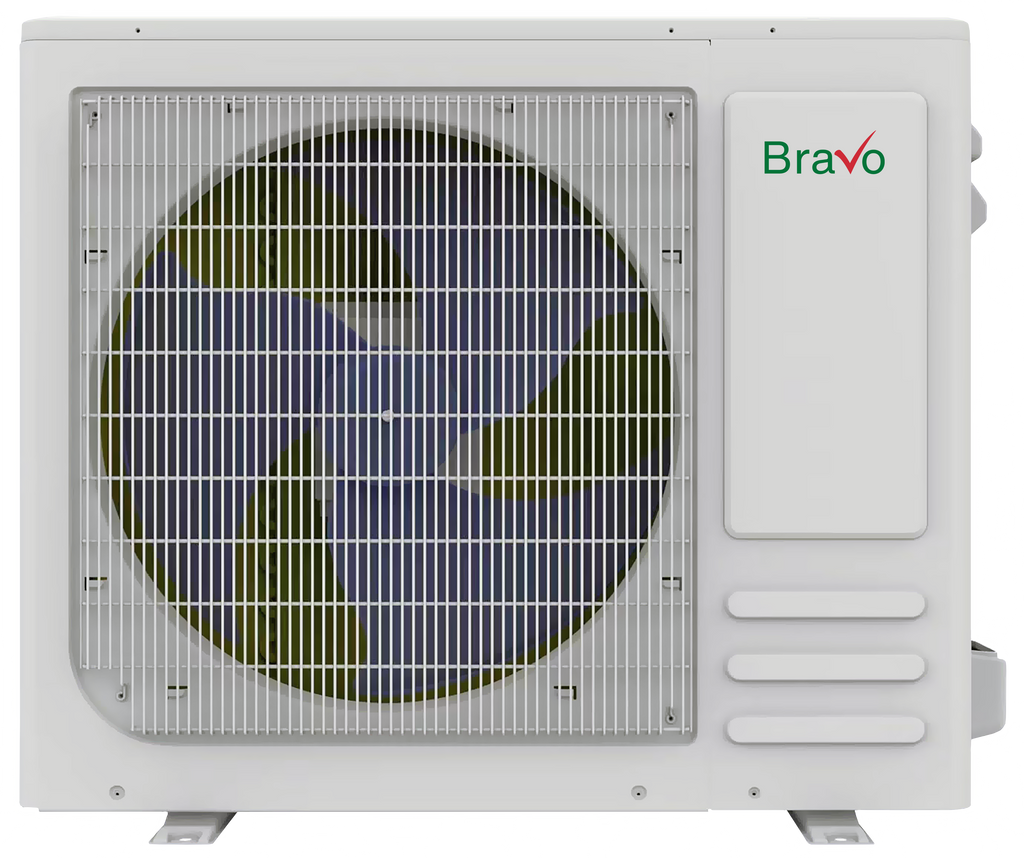

Outdoor BRV-SD36HI-230VO
Voltage 208-230V
Refrigerant R32

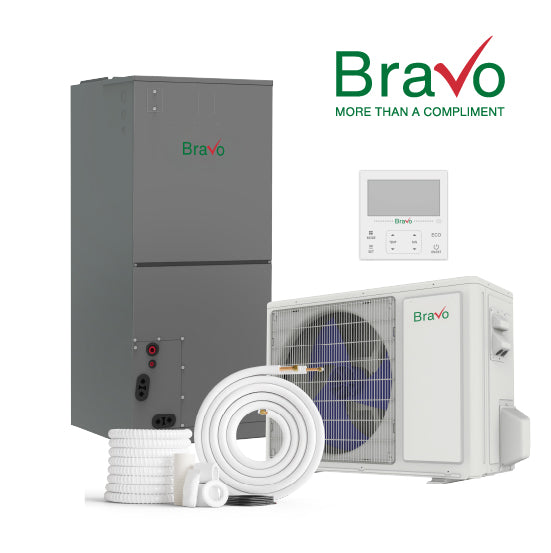

What¡¯s Included
- Indoor unit: BRV-MP36AHUW-230VI
- Outdoor unit: BRV-SD36HI-230VO

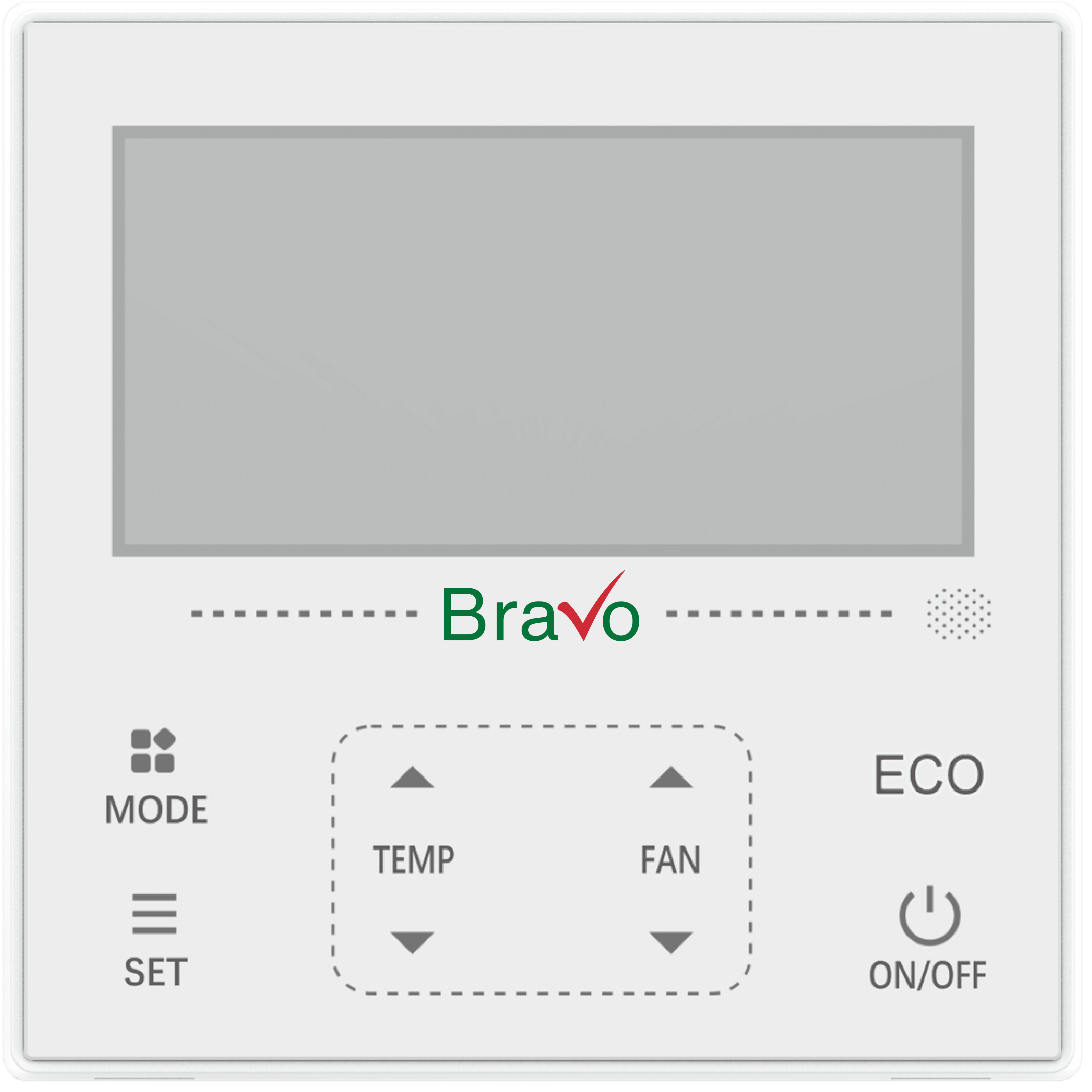

- Wired controller
Indoor Specs
| Spec | Details |
|---|---|
| Model | BRV-MP36AHUW-230VI |
| Power supply | 208-230V, 1Ph, 60Hz |
| Communication wiring | AWG 25x3 |
| Cooling capacity | 36,000 BTU/h (8,300 to 38,900) |
| Cooling input | 3,462 W (710 to 4,500) |
| Cooling rated current | 15.5 A (4.7 to 18.3) |
| EER / EER2 | 10.4 |
| SEER / SEER2 | 17.0 |
| Heating capacity at 47¡ãF | 36,000 BTU/h (6,700 to 41,300) |
| Heating input at 47¡ãF | 3,050 W (460 to 3,550) |
| Heating rated current at 47¡ãF | 13.5 A (2.5 to 15.6) |
| COP | 3.45 W/W |
| Indoor fan motor qty | 1 |
| Indoor fan motor input | 375 W |
| Indoor fan motor RLA | 3.6 A |
| Indoor air flow | 1241 / 901 CFM |
| ESP range | 0 to 0.8 in. w.g. |
| Indoor noise level | 48 / 39 dB(A) |
| Dehumidification | 3.97 L/H |
| Unit dimensions (W x D x H) | 21-1/32 x 21-1/32 x 49-7/32 in. |
| Packed dimensions (W x D x H) | 24-13/32 x 26-37/64 x 50-13/64 in. |
| Net / gross weight | 137 / 151 lbs |
| Drain connection | 3/4 in. |
| Refrigerant piping | 3/8 in. liquid, 3/4 in. gas |
| Design pressure | 609 / 174 PSIG |
| Controller | Wired controller |
| Room temperature range, cooling | 60 to 90¡ãF |
| Room temperature range, heating | 60 to 90¡ãF |
Outdoor Specs
| Spec | Details |
|---|---|
| Model | BRV-SD36HI-230VO |
| Power supply | 208-230V, 1Ph, 60Hz |
| Minimum circuit ampacity | 25 A |
| Maximum fuse | 30 A |
| Compressor model | KTM240D57UMT |
| Compressor type | Twin-rotary |
| Compressor capacity | 36,000 BTU/h |
| Compressor input | 3,462 W (710 to 4,500) |
| Compressor rated current (RLA) | 2.50 A |
| Refrigerant oil | VGA74 / 22.6 oz |
| Outdoor fan motor qty | 1 |
| Outdoor fan motor input | 150 W |
| Outdoor fan motor RLA | 2.50 A |
| Outdoor airflow (max) | 2,650 CFM |
| Outdoor noise level (max) | 56 dB(A) |
| Throttle type | Capillary |
| Unit dimensions (W x D x H) | 37-63/64 x 31-57/64 x 15-3/4 in. |
| Packed dimensions (W x D x H) | 42-1/8 x 34-41/64 x 20-43/64 in. |
| Net / gross weight | 132 / 140 lbs |
| Refrigerant type | R32 |
| Factory precharge | 24.6 ft |
| Additional charge for 3/8 in. liquid pipe | 0.52 oz |
| Refrigerant piping | 3/8 in. liquid, 3/4 in. gas |
| Maximum pipe length | 246 ft |
| Maximum level difference | 98.4 ft |
| Ambient range, cooling | 5 to 131¡ãF |
| Ambient range, heating | -4 to 75¡ãF |
Documents & Downloads
Important
Professional installation is recommended. Verify electrical requirements, auxiliary heat compatibility, line set sizing, and control compatibility before installation.
FAQs
What refrigerant does this Bravo system use?
This system uses R32 refrigerant.
What voltage does this system require?
208-230V, single phase, 60Hz.
Is this a single-zone system?
Yes, this pairing is a single-zone system with one indoor air handler and one outdoor unit.
What controls are supported?
This system is compatible with 24V thermostat controls, and the provided feature list also mentions a wired controller with built-in WiFi.
What are the outdoor operating ranges?
Cooling ambient range is 5 to 131¡ãF, heating ambient range is -4 to 75¡ãF.
What is the maximum line set length?
The maximum pipe length is 246 feet, with a maximum elevation difference of 98.4 feet.
Does it support auxiliary heat?
Yes, it supports an optional electric heat kit up to 20kW.
