Bravo 24,000 BTU Multi-Position Air Handler Side Discharge Heat Pump Inverter R32 230V
$2,289.60
Bravo ? 24K BTU ? Single Zone Heat Pump ? R32 ? 208-230V

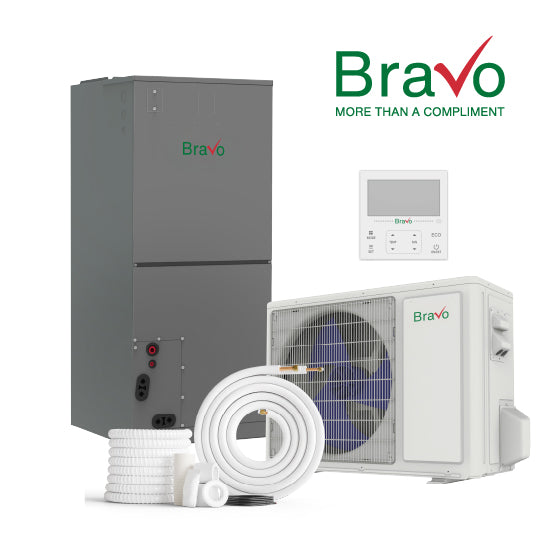

Bravo 24,000 BTU Single Zone Heat Pump System with Multi-Position Air Handler, 208-230V
SKU: BRV-SD24HI-230VO + BRV-MP24AHUW-230VI
Overview
The Bravo 24,000 BTU heat pump system pairs the BRV-SD24HI-230VO outdoor unit with the BRV-MP24AHUW-230VI indoor air handler for efficient year-round comfort in mid-sized residential applications. This single-zone system uses R32 refrigerant, operates on 208-230V single-phase power, and is designed for dependable heating and cooling performance across a broad range of outdoor conditions.
The indoor unit features multi-position installation, an ECM fan motor with constant torque technology, and support for up to 0.80 in. w.g. external static pressure. AHRI and ETL certifications add confidence for long-term performance and safety.
Highlights
24,000 BTU class Single-zone system 208-230V, 1Ph, 60Hz R32 refrigerant 17.7 SEER2 Multi-position air handler ECM constant torque motor 0.80 in. w.g. ESP Optional aux heat kit Crankcase heater standard
- Efficient comfort: This pairing is rated at 17.7 SEER2 and 10.4 EER2 in the provided specs.
- Flexible installation: Supports horizontal left, horizontal right, vertical up, and vertical down configurations.
- Enhanced airflow control: ECM fan motor uses constant torque technology for dependable air delivery.
- External static pressure: Supports up to 0.80 in. w.g. for more flexible ducted applications.
- Optional insulation upgrade: 1 inch R4.2 fiberglass-free insulation helps reduce condensation and improve efficiency.
- Auxiliary heat ready: Supports an optional auxiliary heat kit up to 20kW.
- Multiple control options: Feature copy provided for this system notes a wired controller with built-in WiFi and 24V thermostat.
- Adaptive operation: Adaptive Control System helps optimize performance across changing conditions.
- Cold-weather protection: Crankcase heater comes equipped as standard.
- Service-friendly design: Built for easy maintenance and dependable long-term use.

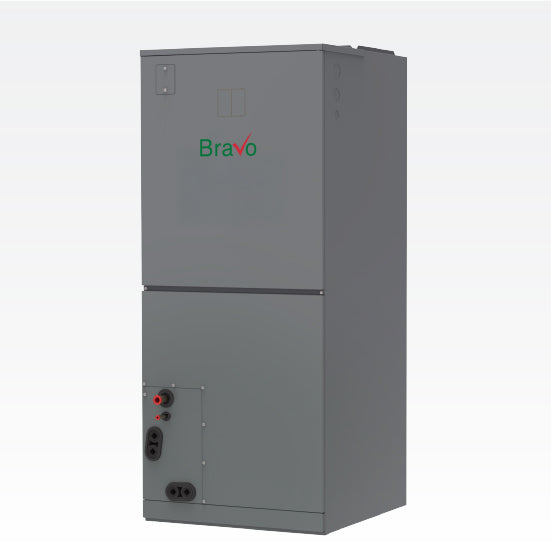

Indoor BRV-MP24AHUW-230VI

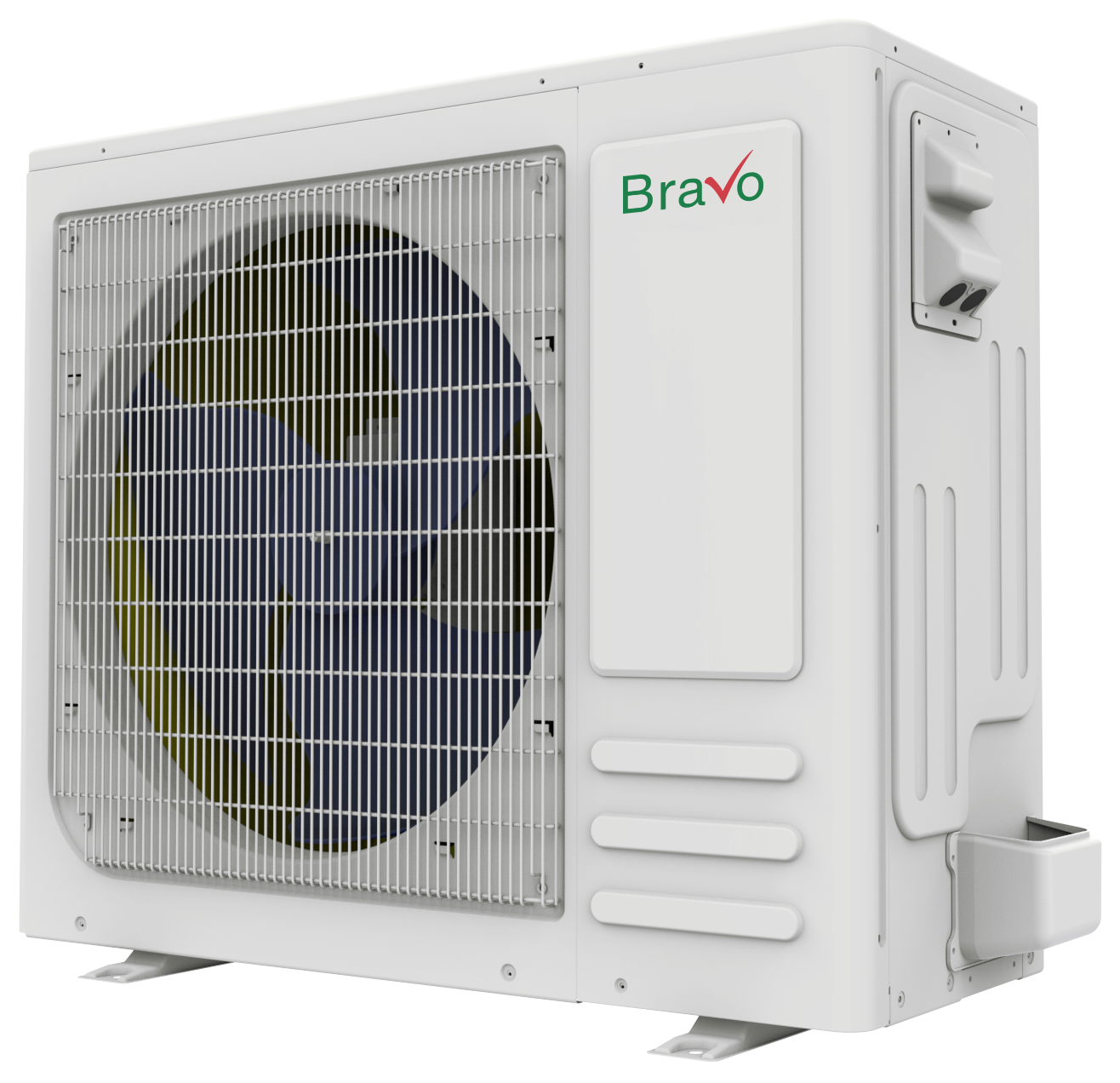

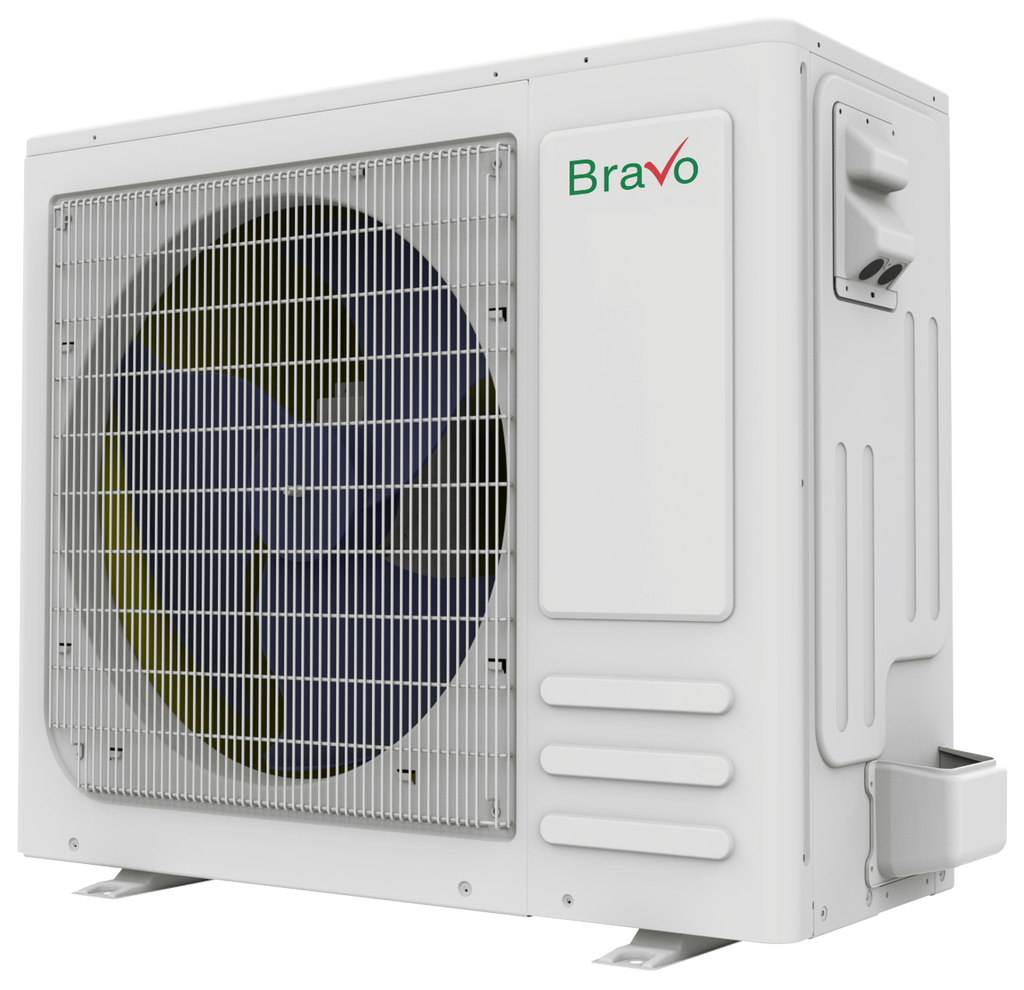

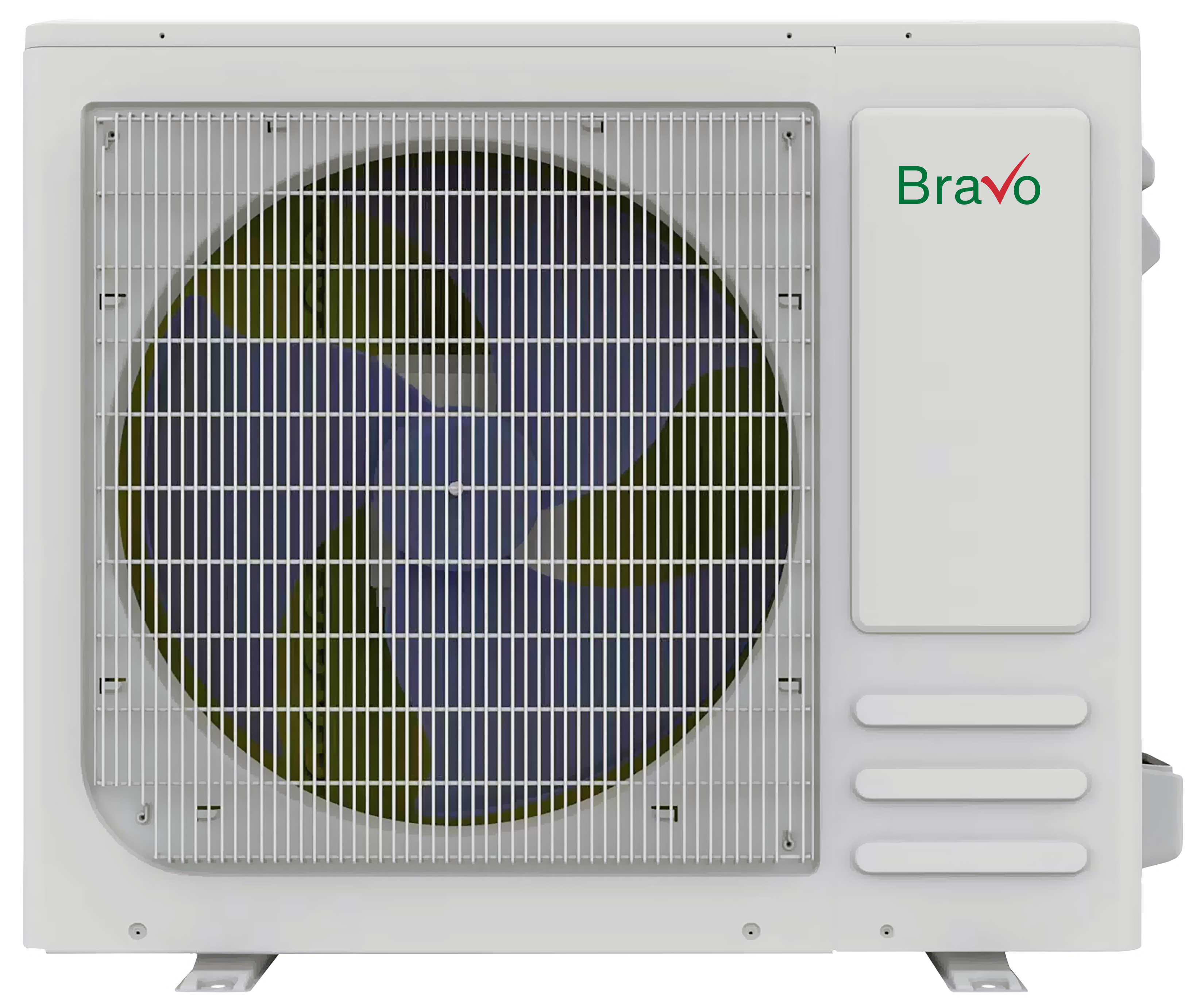

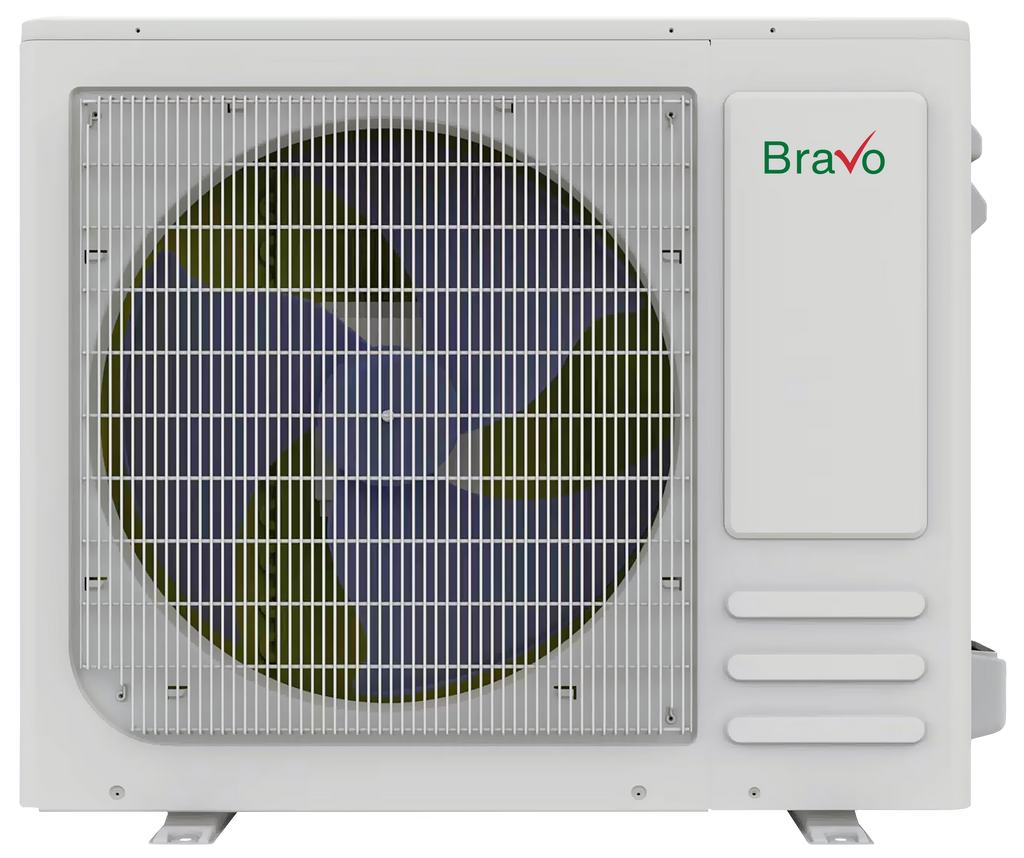

Outdoor BRV-SD24HI-230VO
Voltage 208-230V
Refrigerant R32
What¡¯s Included
- Indoor unit: BRV-MP24AHUW-230VI
- Outdoor unit: BRV-SD24HI-230VO

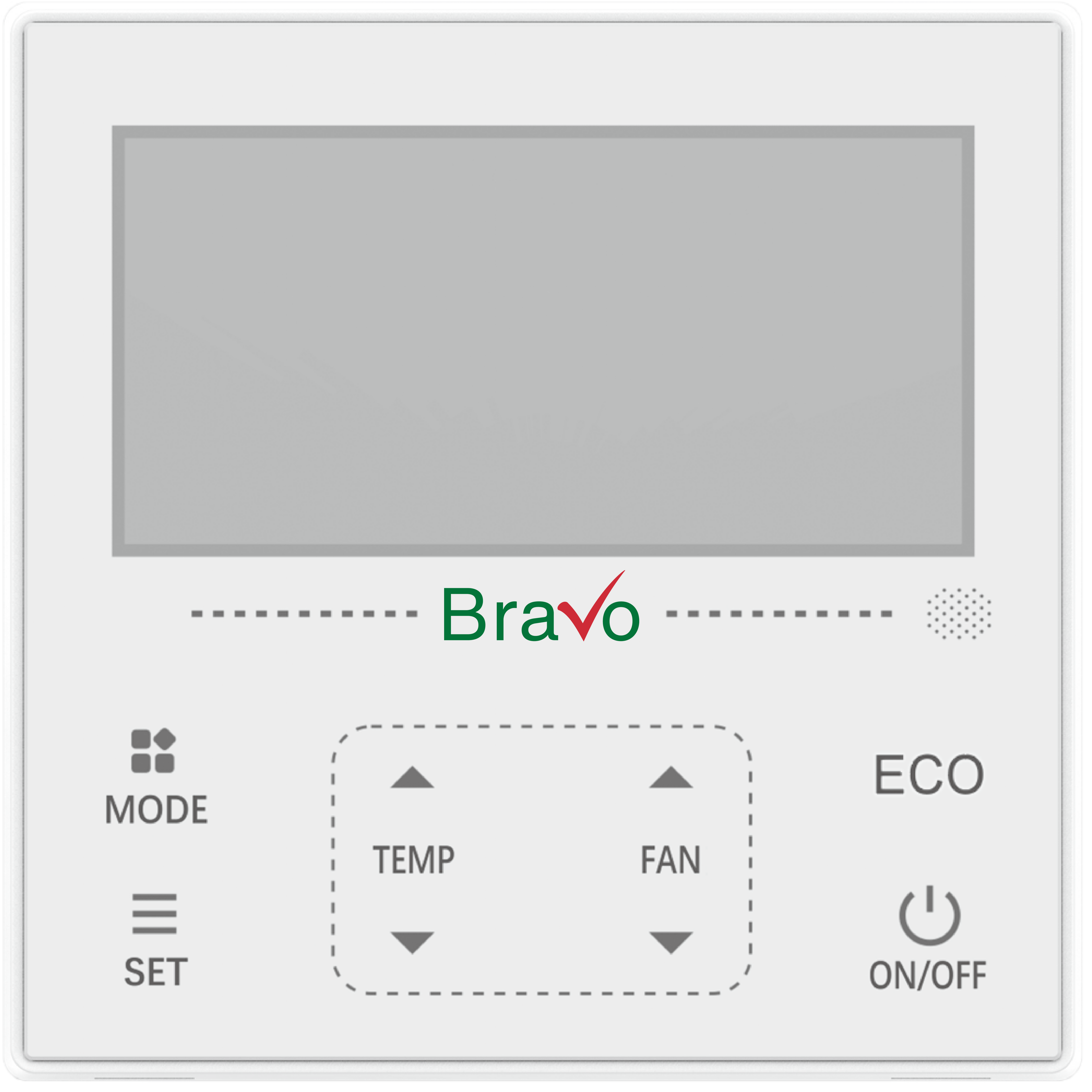

- Wired controller
Indoor Specs
| Spec | Details |
|---|---|
| Model | BRV-MP24AHUW-230VI |
| Power supply | 208-230V, 1Ph, 60Hz |
| Communication wiring | AWG 25x3 |
| Cooling capacity | 24,000 BTU/h (7,200 to 27,000) |
| Cooling input | 2,308 W (530 to 2,870) |
| Cooling rated current | 10.5 A (3.4 to 12.6) |
| EER / EER2 | 10.4 |
| SEER / SEER2 | 17.7 |
| Heating capacity at 47¡ãF | 26,000 BTU/h (7,100 to 30,000) |
| Heating input at 47¡ãF | 2,265 W (440 to 2,730) |
| Heating rated current at 47¡ãF | 10 A (2.4 to 12) |
| COP | 3.4 W/W |
| Indoor fan motor qty | 1 |
| Indoor fan motor input | 249 W |
| Indoor fan motor RLA | 2.6 A |
| Indoor air flow | 867 / 618 CFM |
| ESP range | 0 to 0.8 in. w.g. |
| Indoor noise level | 45 / 34 dB(A) |
| Dehumidification | 2.64 L/H |
| Unit dimensions (W x D x H) | 17-33/64 x 21-1/32 x 45 in. |
| Packed dimensions (W x D x H) | 20-55/64 x 26-37/64 x 46-17/64 in. |
| Net / gross weight | 114 / 127 lbs |
| Drain connection | 3/4 in. |
| Refrigerant piping | 3/8 in. liquid, 3/4 in. gas |
| Design pressure | 609 / 174 PSIG |
| Controller | Wired controller |
| Room temperature range, cooling | 60 to 90¡ãF |
| Room temperature range, heating | 60 to 90¡ãF |
Outdoor Specs
| Spec | Details |
|---|---|
| Model | BRV-SD24HI-230VO |
| Power supply | 208-230V, 1Ph, 60Hz |
| Minimum circuit ampacity | 20 A |
| Maximum fuse | 25 A |
| Compressor model | KTM240D57UMT |
| Compressor type | Rotary |
| Compressor capacity | 24,000 BTU/h |
| Compressor input | 2,308 W (530 to 2,870) |
| Compressor rated current (RLA) | 2.00 A |
| Refrigerant oil | VGA74 / 22.6 oz |
| Outdoor fan motor qty | 1 |
| Outdoor fan motor input | 75 W |
| Outdoor fan motor RLA | 2.00 A |
| Outdoor airflow (max) | 2,000 CFM |
| Outdoor noise level (max) | 55 dB(A) |
| Throttle type | Capillary |
| Unit dimensions (W x D x H) | 36-1/32 x 25-19/32 x 13-37/64 in. |
| Packed dimensions (W x D x H) | 40-5/32 x 28-15/16 x 17-1/8 in. |
| Net / gross weight | 84 / 92 lbs |
| Refrigerant type | R32 |
| Factory precharge | 24.6 ft |
| Additional charge for 3/8 in. liquid pipe | 0.52 oz |
| Refrigerant piping | 3/8 in. liquid, 3/4 in. gas |
| Maximum pipe length | 164 ft |
| Maximum level difference | 82 ft |
| Ambient range, cooling | 5 to 131¡ãF |
| Ambient range, heating | -4 to 75¡ãF |
Documents & Downloads
Important
Professional installation is recommended. Verify electrical requirements, auxiliary heat compatibility, line set sizing, and control compatibility before installation.
FAQs
What refrigerant does this Bravo system use?
This system uses R32 refrigerant.
What voltage does this system require?
208-230V, single phase, 60Hz.
Is this a single-zone system?
Yes, this pairing is a single-zone system with one indoor air handler and one outdoor unit.
What controls are listed for this system?
The spec table lists a wired controller, and the provided feature list also mentions built-in WiFi and 24V thermostat control.
What are the outdoor operating ranges?
Cooling ambient range is 5 to 131¡ãF, heating ambient range is -4 to 75¡ãF.
What is the maximum line set length?
The maximum pipe length is 164 feet, with a maximum elevation difference of 82 feet.
Does it support auxiliary heat?
Yes, it supports an optional auxiliary heat kit up to 20kW.
