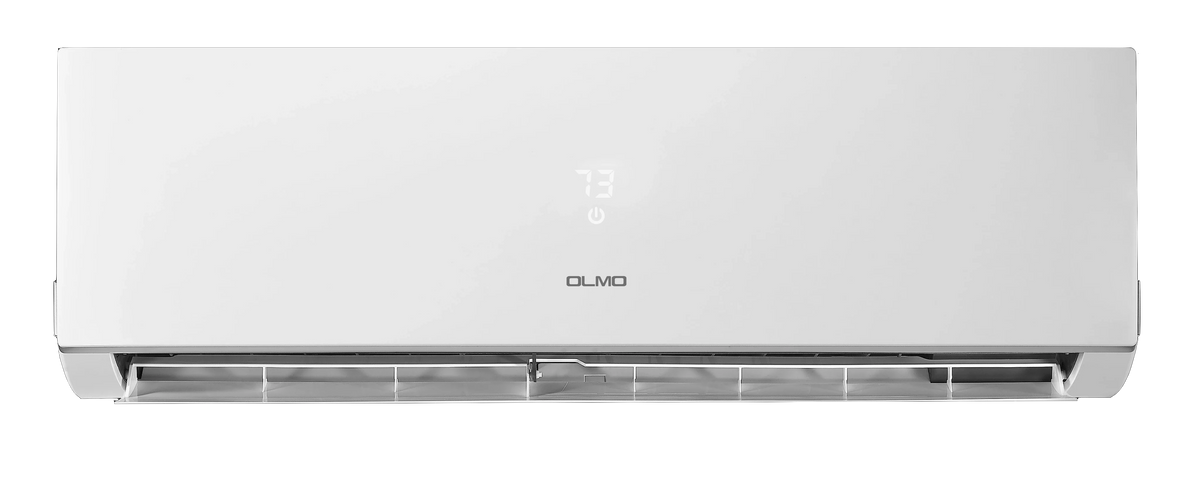

Olmo Sierra Wall Mount Ductless Mini Split AC Indoor Unit ¨C 9000 BTU
No Installation
€261,00
Skip to product information
Olmo Sierra Wall Mount Ductless Mini Split AC Indoor Unit ¨C 9000 BTU
€261,00
OLMO Multi-Sierra Indoor ? R454B ? Wall-Mount
OLMO Multi-Sierra Indoor ¡ª 9,000 BTU, R454B ¡ª OS-RM09SW-230VI
Wall-mount indoor unit with Smart Connect, SEER2 up to 25, and quiet operation. Pairs with OLMO Multi-Sierra outdoor units.
Highlights
9,000 BTU/h SEER2 up to 25 R454B (system) Wi-Fi included 208¨C230V, 1Ph Quiet 39/37/35 dB(A)
- Smart control: Wi-Fi Smart Connect for app control per room.
- Comfort features: Sleep, Turbo, Eco, multi-speed fan, timer, auto swing.
- High efficiency: SEER2 up to 25 with compatible Multi-Sierra ODU.
- Quiet operation: low indoor sound levels for bedrooms and offices.
ModelOS-RM09SW-230VI
RefrigerantR454B (system)
ControlsRemote + Wi-Fi app
Sound39/37/35 dB(A)
What's Included
- Indoor unit OS-RM09SW-230VI (9,000 BTU)
- Wi-Fi adapter (17310900A05963)
- Wireless remote control
- Installation & user manuals
- Manufacturer warranty
Installation kit with pre-flared copper, drain, and communication cable is optional and must be selected if needed.
Tech Specs
| Spec | Details |
|---|---|
| Model | OS-RM09SW-230VI |
| Capacity (rated) | 9,000 BTU/h |
| SEER2 / EER2 (up to) | 25 / 13.65 |
| Refrigerant | R454B (with matching Multi-Sierra ODU) |
| Refrigerant piping (liq/gas) | 1/4¡å / 3/8¡å |
| Power | 208¨C230 V, 1-Phase, 60 Hz |
| Voltage range | 187¨C253 V |
| MCA / Max fuse | 3 A / 5 A |
| Indoor noise (H/M/L) | 39 / 37 / 35 dB(A) |
| Indoor airflow (H/M/L/Quiet) | 382 / 341 / 294 / 247 (per spec) |
| Unit dimensions (W¡ÁH¡ÁD) | 32 1/16 ¡Á 10 5/8 ¡Á 8 7/16 in |
| Packing dimensions (W¡ÁD¡ÁH) | 34 1/4 ¡Á 13 3/16 ¡Á 10 7/16 in |
| Net / Gross weight | 18.7 / 23.1 lb |
| Filter size (W¡ÁD¡ÁH) | 11 15/16 ¡Á 1/2 ¡Á 13 3/4 in |
| Drain connection | 3/4¡å |
| Controller | L1-12 |
| Operating range (cool / heat) | 61¨C86 ¡ãF / 61¨C86 ¡ãF (per spec) |
Performance depends on the matched Multi-Sierra outdoor unit and system design.
Performance Features
- Remote control included
- Smart Connect app control
- Sleep, Turbo, and Eco modes
- Multiple fan speeds and timer
- Auto-swing louvers
- Self-clean mode
- LED display
Documents
Warranty
- 5-year compressor limited warranty
- 2-year parts limited warranty
- 1-year remote control
Important
Installed by a licensed HVAC professional. Registration within 60 days. Select an installation kit if needed: pre-flared copper, drain hose, communication cable, wrapping bands.
FAQs
Does this include Wi-Fi?
Yes. Smart Connect Wi-Fi adapter is included.
Which outdoor units is it compatible with?
All OLMO Multi-Sierra outdoor units sized for 9,000 BTU zones and using R454B.
What line sizes are required?
1/4¡å liquid and 3/8¡å gas when paired per Multi-Sierra specifications.
How quiet is it?
Indoor sound is 39/37/35 dB(A) on H/M/L.
