Olmo R410A Sierra Wall Mount Ductless Mini Split AC Indoor Unit ¨C 9000 BTU
Olmo R410A Sierra Wall Mount Ductless Mini Split AC Indoor Unit ¨C 9000 BTU
Olmo Sierra Wall Mount Indoor Unit ¡ª 9,000 BTU ? OS-M09SRW-230VI
Multi-zone indoor head with Smart Connect (app control) included, plus remote features like Sleep, Turbo, Eco, timer, multiple fan speeds, and auto-swing louvers.
Overview

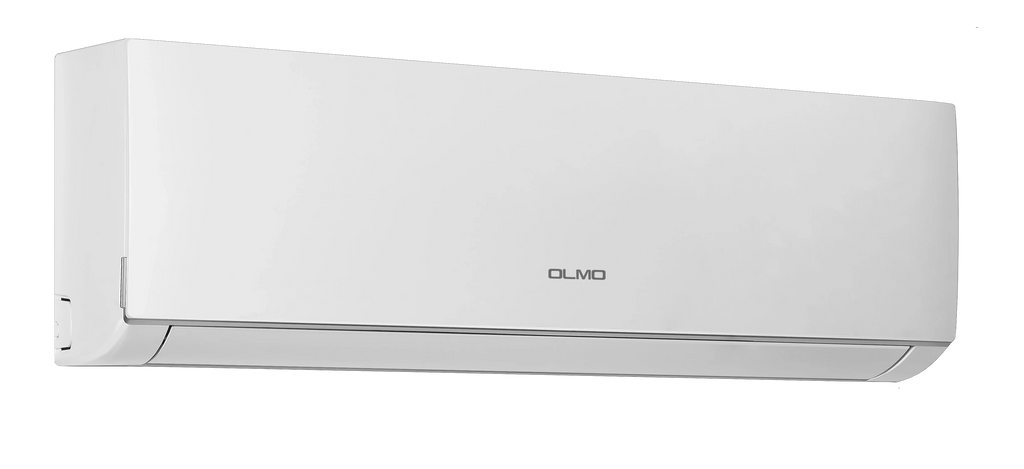

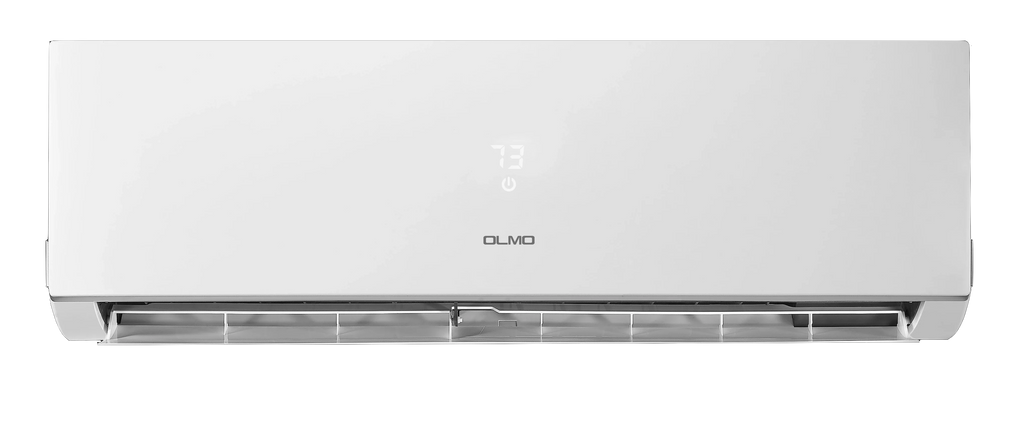

The OS-M09SRW-230VI is a 9,000 BTU wall-mount ductless indoor unit designed to pair with Olmo Multi-Sierra Series outdoor units. It includes Smart Connect for independent app control, helping add convenience and room-by-room comfort to a multi-zone system. The included remote supports common comfort modes like Sleep, Turbo, and Eco, along with multiple fan speeds, timer functions, and auto-swing louvers.
Highlights
- Multi-Sierra compatible: Designed to combine with Olmo Multi-Sierra outdoor units.

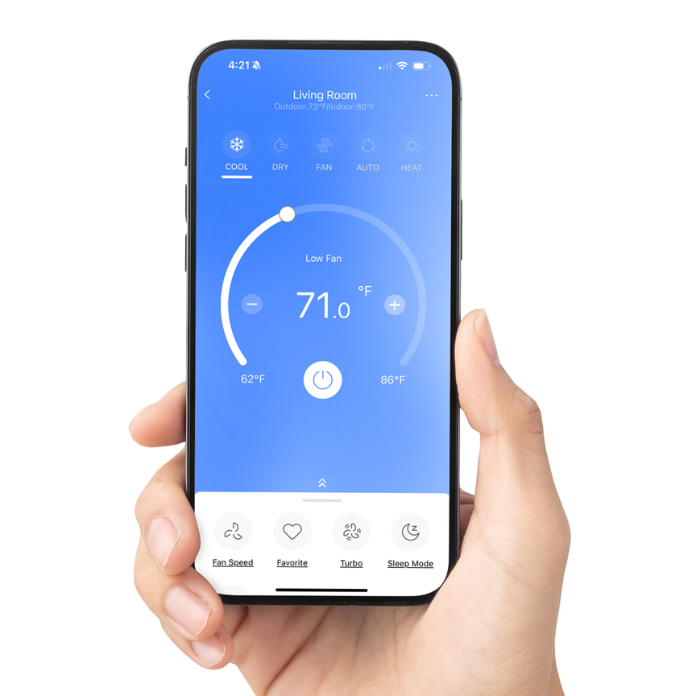

- Smart control included: Smart Connect enables app-based control from wherever you are.
- Everyday comfort features: Sleep, Turbo, Eco, multiple fan speeds, timer, and auto-swing louvers.
- Standard line sizing: 1/4" liquid and 3/8" gas connections.
What's Included
- Indoor wall mount unit: OS-M09SRW-230VI
- Smart Connect (WiFi / app control) module: included

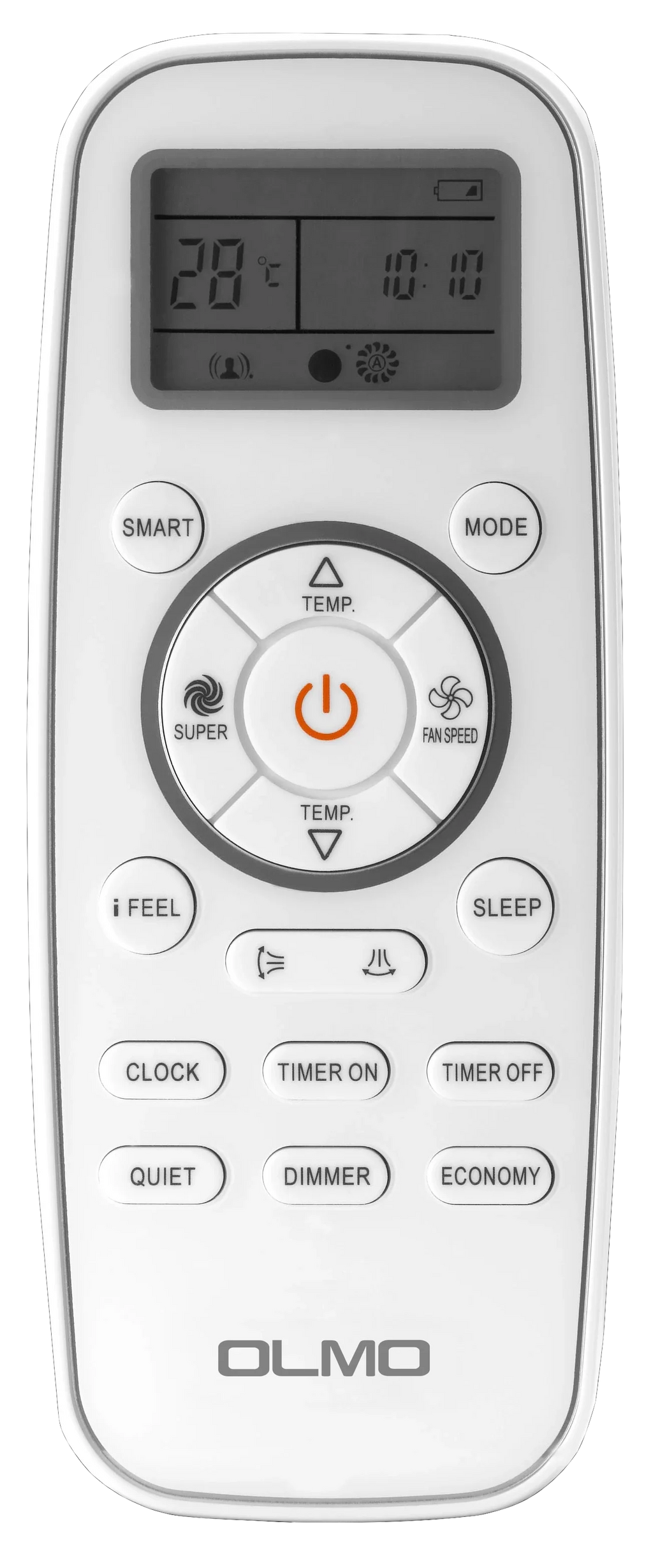

- Remote control (included)
Indoor Specs
| Spec | Details |
|---|---|
| Model | OS-M09SRW-230VI |
| BTU Rated | 9,000 |
| Power Source | 208¨C230V, 1Ph, 60Hz |
| Voltage Range | 187¨C253 V |
| Refrigerant Piping (Liquid / Gas) | 1/4" ¨C 3/8" |
| Indoor Noise (H/M/L) | 39 / 35 / 30 dB(A) |
| Unit Dimensions (W¡ÁH¡ÁD) | 32.02 ¡Á 10.75 ¡Á 8.13 in |
| Unit Net / Gross Weight | 19.84 / 24.25 lb |
| Packing Dimensions (W¡ÁD¡ÁH) | 39.38 ¡Á 13.19 ¡Á 6.38 |
Videos
Documents & Downloads
Important
Installed by a licensed HVAC professional. This is an indoor wall-mount unit intended to be matched with a compatible Olmo Multi-Sierra outdoor system. Confirm electrical requirements (208¨C230V) and piping sizes (1/4" liquid, 3/8" gas) before ordering.
