Bravo Milano Universal Floor Ceiling Ductless Mini Split AC Indoor Unit ¨C 18000 BTU
Bravo Milano Universal Floor Ceiling Ductless Mini Split AC Indoor Unit ¨C 18000 BTU
Bravo Milano Universal Floor Ceiling Ductless Mini Split AC Indoor Unit ¨C 18000 BTU
Product Overview

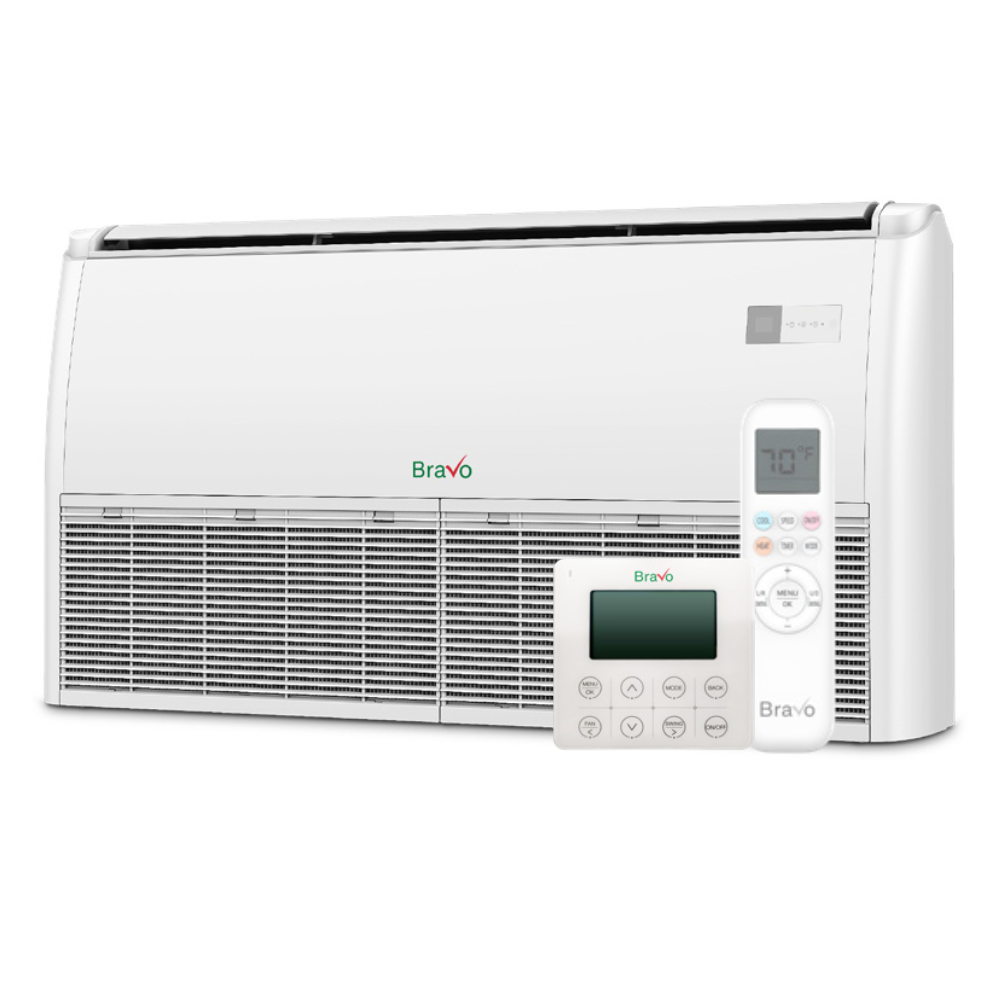

Ductless mini split indoor unit for flexible low-wall (floor) or ceiling installation. Quiet operation, thermostat-ready, and designed for focused room comfort.
Badges
- Universal floor/ceiling mount
- 18,000 BTU capacity
- 208/230V ? 1Ph ? 60Hz
- Remote & wall thermostat
- Low noise 41 dB(A)
Contact
???
Performance & comfort features
- Universal cabinet ¡ª mounts on floor (low wall) or ceiling
- Wireless remote control included
- Wall thermostat included/compatible for precise setpoint
- Multiple fan speeds with 530 CFM airflow
- Auto restart after power interruption
- Quiet operation ¡ª as low as 41 dB(A)
At-a-glance
| Capacity | 18,000 Btu/h (cool) |
|---|---|
| Heating | 18,000 Btu/h |
| Airflow | 530 CFM |
| Noise | 41 dB(A) |
Watch: Product overview
What¡¯s included
- UFC indoor unit ¡ª BRV-M18FC-230VI
- Wireless remote control
- Wall thermostat (included for UFC models)
- Mounting hardware & manuals
For warranty coverage, installation by a licensed HVAC professional may be required; see current documentation.
Technical specifications
| Indoor model | BRV-M18FC-230VI |
|---|---|
| Power supply | 208¨C230 / 1 / 60 |
| Cooling rated capacity | 18,000 Btu/h |
| Heating rated capacity | 18,000 Btu/h |
| Max fuse | 5 A |
| Indoor airflow | 530 CFM |
| Indoor noise level | 41 dB(A) |
| Dimensions | 39.37 ¡Á 27.17 ¡Á 9.25 in |
| Packing | 42.52 ¡Á 30.32 ¡Á 12.80 in |
| Net / gross weight | 59.5 / 69.5 lbs |
| Refrigerant piping | 1/4¡å (liquid) / 1/2¡å (gas) |
| Operating temperature range | 60.8 ¨C 89.6 ¡ãF |
Manuals & documents
- Owner / Installation Manual (PDF)
- Remote Control Manual (PDF)
- Smart App Guide (PDF)
- Wall Thermostat Guide (PDF)
If you need the PDFs, search the document titles above in your Bravo Milano UFC docs folder or site files.
Warranty
- 3 year compressor limited warranty
- 3 year parts limited warranty (may require installation by a licensed HVAC technician)
Registration requirements and coverage terms vary¡ªconfirm current manufacturer documentation for full details.
Full description
Tap to expand
The Bravo Milano UFC 18,000 BTU indoor unit is a universal floor/ceiling solution built for spaces that need flexible placement and quiet performance. Delivering up to 530 CFM of airflow with a low 41 dB(A) sound level, it¡¯s a strong fit for living areas, offices, or studios.
The unit ships with a wireless remote and wall thermostat, and pairs with compatible Bravo Milano outdoor condensers for reliable year-round comfort. Inverter operation helps maintain stable temperatures while improving efficiency versus fixed-speed systems.
