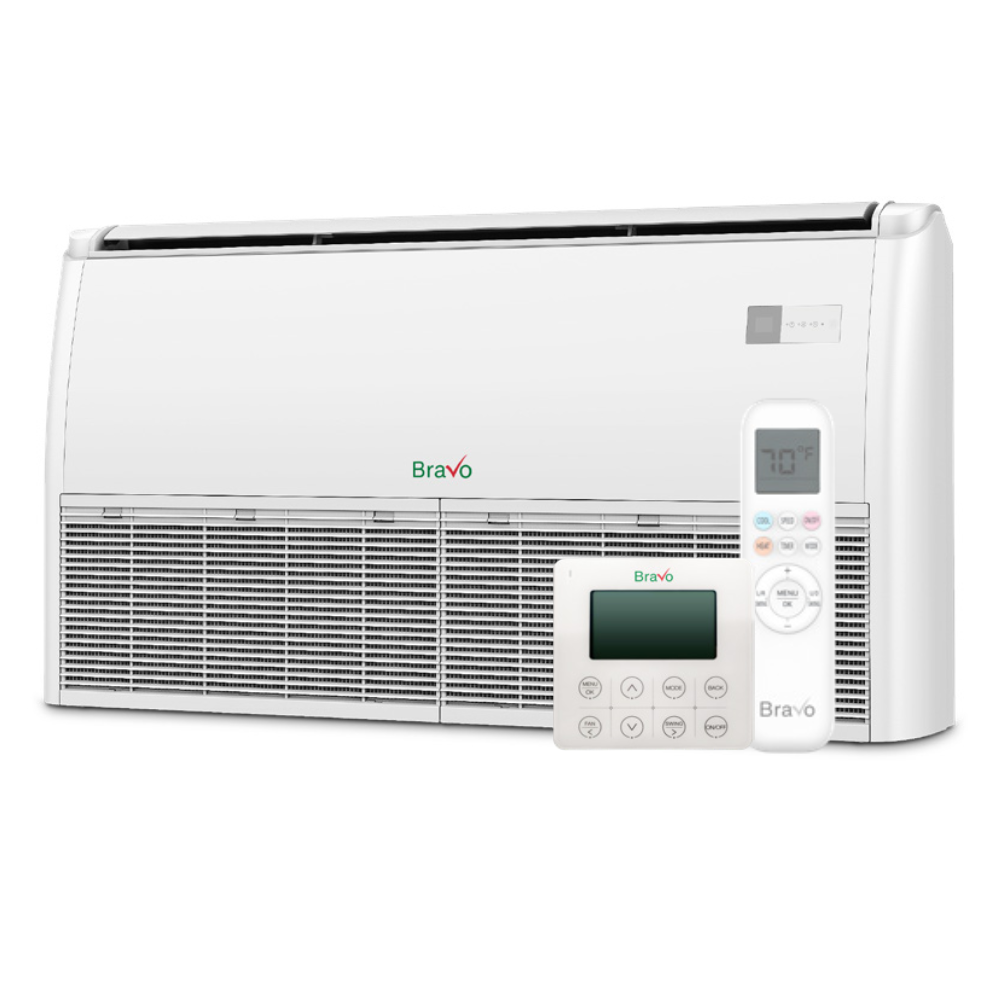

Bravo Milano Universal Floor Ceiling Ductless Mini Split AC Indoor Unit ¨C 12000 BTU
Bravo Milano Universal Floor Ceiling Ductless Mini Split AC Indoor Unit ¨C 12000 BTU
Bravo Milano Universal Floor Ceiling Ductless Mini Split AC Indoor Unit ¨C 12000 BTU
Product Overview
Ductless mini split indoor unit for flexible low-wall (floor) or ceiling installation. Quiet operation, thermostat-ready, and designed for focused room comfort.
Badges
- Universal floor/ceiling mount
- 12,000 BTU capacity
- 208¨C230V ? 1Ph ? 60Hz
- Wireless remote & thermostat
- Low noise 39 dB(A)
Contact
???
Performance & comfort features
- Universal cabinet ¡ª mounts on floor (low wall) or ceiling
- Wireless remote control included
- Wall thermostat included/compatible for precise setpoint
- Multiple fan speeds with up to 500 CFM airflow
- Auto restart after power interruption
- Quiet operation ¡ª as low as 39 dB(A)
At-a-glance
| Capacity | 12,000 Btu/h (cool) |
|---|---|
| Heating | 12,000 Btu/h |
| Airflow | 500 CFM |
| Noise | 39 dB(A) |
Watch: Product overview
What¡¯s included
- UFC indoor unit ¡ª BRV-M12FC-230VI
- Wireless remote control
- Wall thermostat (included for UFC models)
- Mounting hardware & manuals
For warranty coverage, installation by a licensed HVAC professional may be required. Always confirm requirements in the current warranty documentation.
Technical specifications
| Indoor model | BRV-M12FC-230VI |
|---|---|
| Power supply | 208¨C230 / 1 / 60 |
| Cooling rated capacity | 12,000 Btu/h |
| Heating rated capacity | 12,000 Btu/h |
| Max fuse | 5 A |
| Indoor airflow | 500 CFM |
| Indoor noise level | 39 dB(A) |
| Unit dimensions | 39.37 ¡Á 27.17 ¡Á 9.25 in |
| Packing dimensions | 42.52 ¡Á 30.32 ¡Á 12.80 in |
| Net / gross weight | 57.3 / 67.2 lbs |
| Refrigerant piping | 1/4¡å (liquid) / 3/8¡å (gas) |
| Operating temperature range | 60.8 ¨C 89.6 ¡ãF |
Manuals & documents
- Owner / Installation Manual (PDF)
- Remote Control Manual (PDF)
- Smart App Guide (PDF)
- Wall Thermostat Guide (PDF)
If you need the PDFs, search the document titles above in your Bravo Milano UFC docs folder or site files.
Warranty
- 3 year compressor limited warranty
- 3 year parts limited warranty (may require installation by a licensed HVAC technician)
Registration requirements and coverage terms vary¡ªconfirm the current manufacturer documentation for full details.
Full description
Expand
The Bravo Milano UFC 12,000 BTU indoor unit is a universal floor/ceiling solution built for spaces that need flexible placement and quiet performance. Whether mounted low on a wall (floor) or on the ceiling, it delivers focused comfort with up to 500 CFM of airflow and a low 39 dB(A) sound level.
Ideal for living areas, offices, or studios, the UFC ships with a wireless remote and a wall thermostat, and pairs with compatible Bravo Milano outdoor condensers for reliable year-round heating and cooling. Inverter operation helps maintain more stable temperatures and improved efficiency versus fixed-speed systems.
